Tumtec FST-18S Optical Fiber Fusion Splicer Machine

Tumtec FST-18S Optical Fiber Fusion Splicer Machine

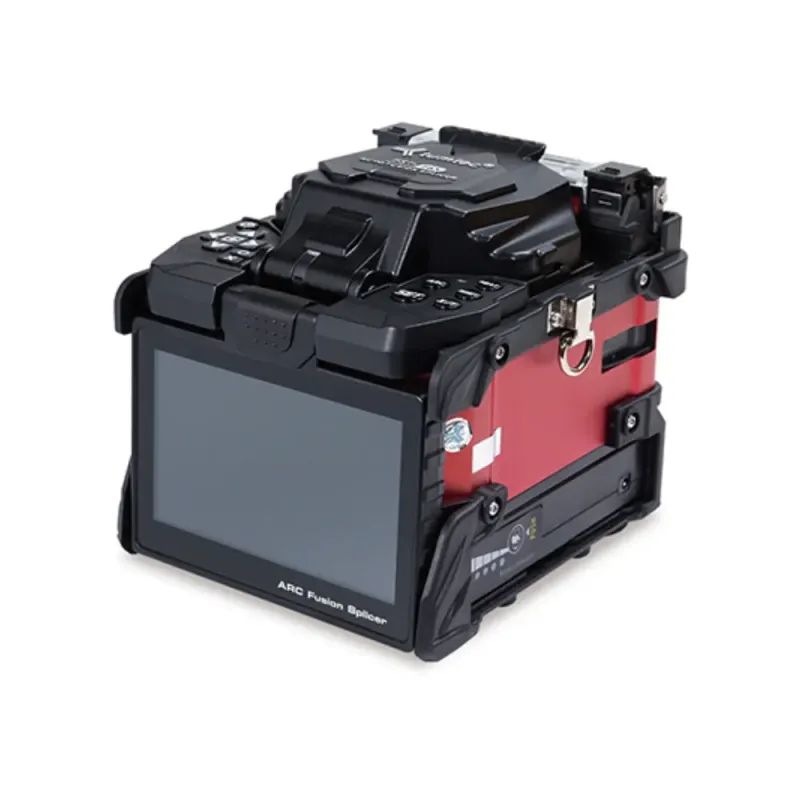

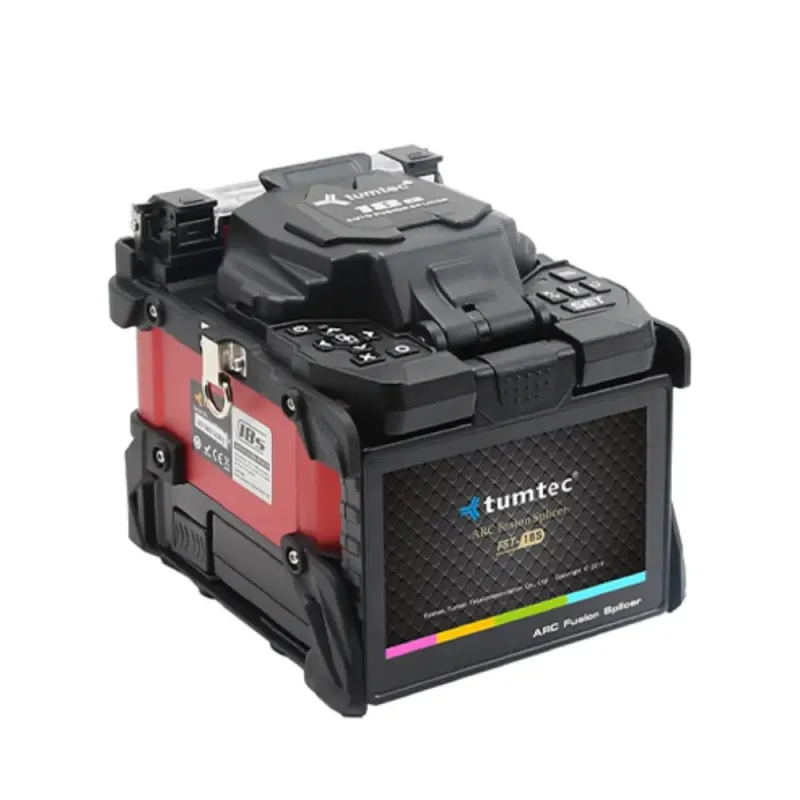

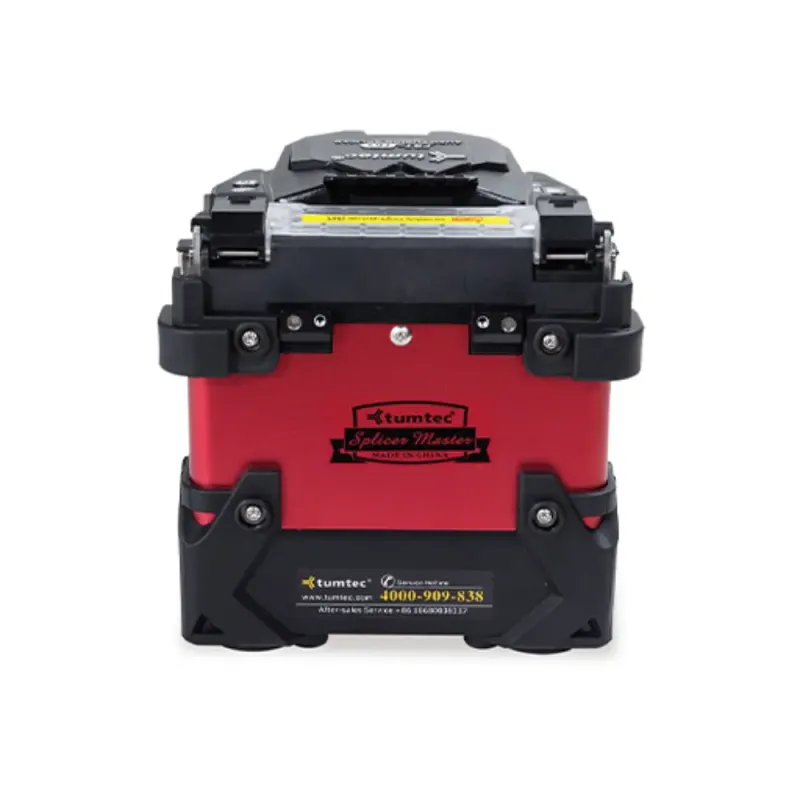

The Tumtec FST-18S Optical Fiber Fusion Splicer Machine supports multiple fiber types for professional network installation and maintenance. It works with SM, MM, DS, NZ/NZDS, BI, and G.654E fibers under ITU-T standards. The machine accepts cladding diameters from 0.25-3.0mm and indoor cables. Its positioning system supports 0.125-1mm coating diameters and 5-16mm cleave lengths.

Splicing Modes and Low Loss

With 41 preset splicing modes, users can store up to 100 additional modes for different fiber requirements. Average splicing loss reaches 0.02dB for SM and BI fibers, while MM reaches 0.01dB. DS and NZ/NZDS measure 0.04dB. The Tumtec FST-18S Optical Fiber Fusion Splicer Machine also provides ≥60dB return loss.

Fast Splicing and Heating

The SM FAST mode completes splicing in approximately 6 seconds, supporting efficient fiber installation work. Splicing loss estimation provides additional result information before final inspection. The heating oven supports five preset tube lengths from 20mm to 60mm. Heating time is adjustable from 10-900 seconds, with typical heating exceeding 15 seconds on the Tumtec FST-18S Optical Fiber Fusion Splicer Machine.

Display and Operation

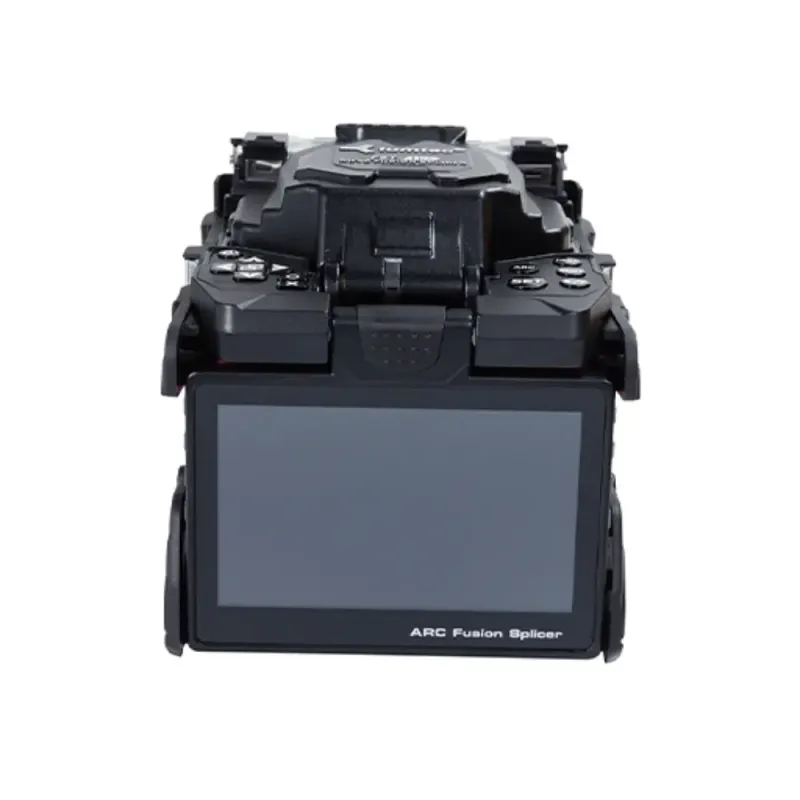

Dual 90° cameras work with a 5.0-inch high-resolution capacitive touchscreen for clear fiber viewing. X, Y, and X/Y views provide 500X magnification for detailed alignment. Users can operate the machine through buttons or touchscreen controls. Three high-power white LEDs support workspace illumination. Cladding alignment and fine alignment are available with the Tumtec FST-18S Optical Fiber Fusion Splicer Machine.

Battery and Data Storage

A 6800mAh battery supports more than 300 typical splicing and heating cycles per charge. The system stores up to 10,000 recent splicing records and 1,000 images for reference. Its electrode life reaches 5,500 discharges, while automatic arc adjustment responds to air pressure and ambient temperature. The Tumtec FST-18S Optical Fiber Fusion Splicer Machine weighs 1905g with its battery.

Power and Operating Conditions

The machine accepts AC 100-240V or DC 12-15V power input and includes a MiniUSB 2.0 interface. Its compact body measures 145×165×145mm, supporting convenient transport between work locations. Operating conditions cover altitudes up to 5,000m, humidity from 0-95%, temperatures from -10 to 50°C, and wind speeds up to 15m/s. The Tumtec FST-18S Optical Fiber Fusion Splicer Machine also includes a ≥1.96N tension test.

Buy Tumtec FST-18S Optical Fiber Fusion Splicer Machine from Brotherhood IT

In Bangladesh, you can get original Tumtec FST-18S Optical Fiber Fusion Splicer Machine from Brotherhood IT. We have a large collection of latest Splicer Machine to purchase. Order online from bhits.com.bd and get yours at the best price with delivery across Bangladesh. The Tumtec FST-18S Optical Fiber Fusion Splicer Machine comes with 2 Year warranty.
