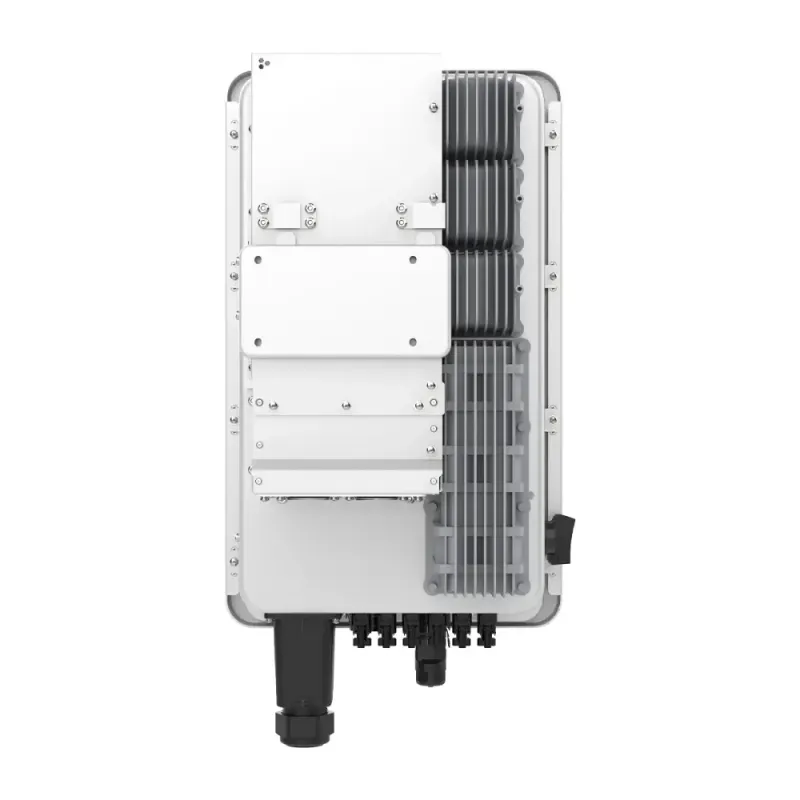

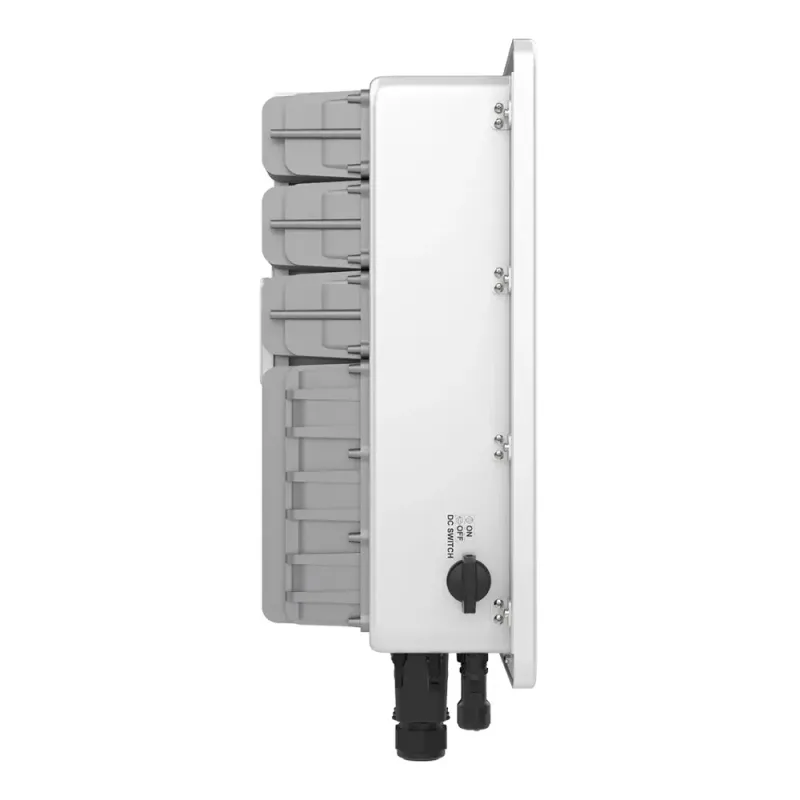

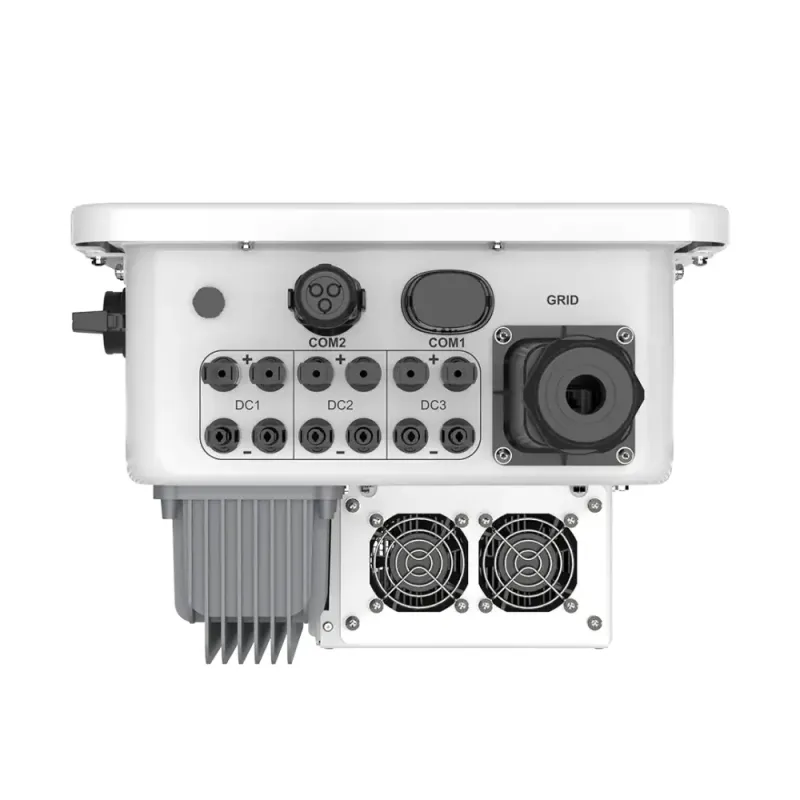

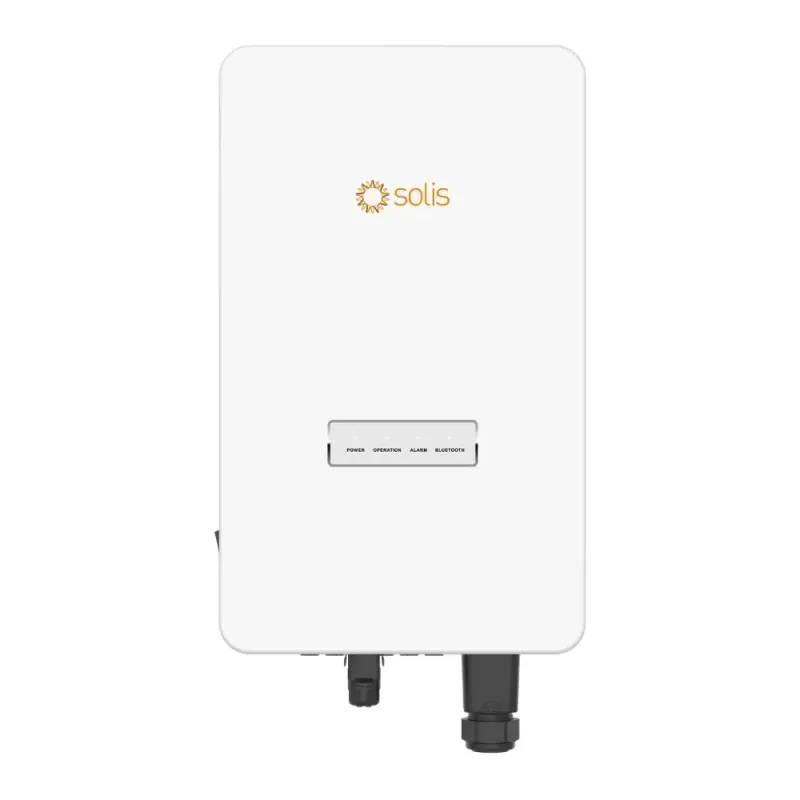

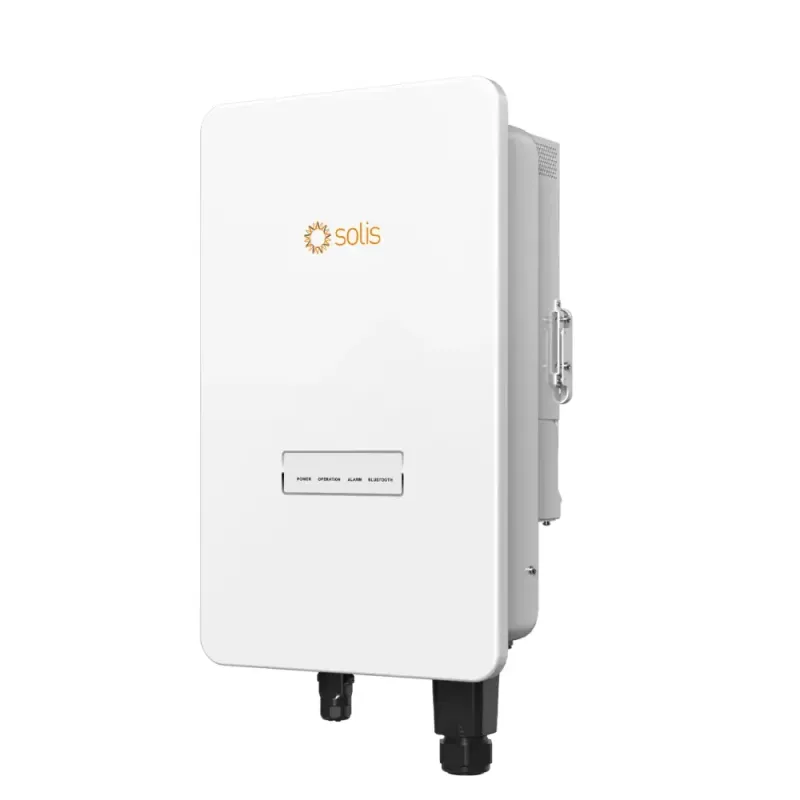

Solis S6-GC3P30K03-NV 30kW Three Phase ON-Grid Solar Inverter
- Brand: Solis
- Product Code: 015318
- Availability: In Stock
৳240,790/-
Solis S6-GC3P30K03-NV 30kW Three Phase ON-Grid Solar Inverter
The Solis S6-GC3P30K03-NV 30kW Three Phase ON-Grid Solar Inverter delivers efficient solar power conversion for commercial and industrial installations. This 3 Phase Solar Inverter provides 30 kW rated AC output power with a maximum efficiency of 98.5%. Its transformerless topology supports efficient operation, while a DC/AC ratio exceeding 150% allows a recommended maximum PV input capacity of 45 kW. The inverter supports grid voltages of 220/380 V and 230/400 V at 50 Hz or 60 Hz.
Designed for high-capacity solar systems, the Solis S6-GC3P30K03-NV Solar Inverter functions as an On-Grid Solar Inverter with three MPPTs and six maximum input strings. It supports a maximum DC input voltage of 1100 V and an MPPT voltage range of 180-1000 V. Each MPPT accommodates up to 42 A input current, helping manage solar generation across multiple strings. Its power factor exceeds 0.99, with total harmonic distortion below 3%.
For operational monitoring, this Solis 30kW solar inverter offers Bluetooth connectivity, app control, LED indicators, and grid monitoring. Built-in features include I/V curve scanning, multi-peak scanning, and string monitoring for improved system visibility. Although the term Energy storage solar inverter describes a different system category, this model is specifically designed for grid-tied solar applications. It does not specify integrated battery storage functionality.
The Solis S6-GC3P30K03-NV Solar Inverter features IP66 protection and multiple safeguards, including DC reverse-polarity, short-circuit, overcurrent, surge, temperature, and anti-islanding protection. Its integrated DC switch supports convenient system isolation. Operating temperatures range from -25°C to +60°C, while noise levels remain at or below 55 dB(A). Measuring 355 by 625 by 250 mm and weighing approximately 26.5 kg, this white inverter suits commercial solar installations requiring efficient conversion and advanced monitoring.
Buy Solis S6-GC3P30K03-NV 30kW Solar Inverter from Brotherhood IT
In Bangladesh, you can get original Solis S6-GC3P30K03-NV 30kW Solar Inverter From Brotherhood IT. We have a large collection of latest Inverter to purchase. Order online from bhits.com.bd and get yours at the best price with delivery across Bangladesh. The Solis S6-GC3P30K03-NV 30kW Solar Inverter comes with 5 Year warranty.
Specification
| General Information | ||
| Rated AC Output Power | 30 kW | |
| Connectivity | ||
| App Control | Yes | |
| Protection | DC reverse-polarity protection Short circuit protection Output over current protection Surge protection Grid monitoring Anti-islanding protection: Temperature protection Strings monitoring I/V Curve scanning Multi peak scan Integrated DC switch |
|
| Noise Level | ≤ 55 dB(A) | |
| Others | Topology: Transformerless > 150% DC/AC ratio Display: LED indicator & Bluetooth + APP |
|
| Output | ||
| AC Output | Max. output power: 30 kW Max. apparent output power: 30 kVA Rated grid voltage: 3/N/PE, 220 V / 380 V, 230 V / 400 V Rated grid frequency: 50 Hz / 60 Hz Power Factor: >0.99 (0.8 leading - 0.8 lagging) THDi: < 3% |
|
| Input (Charging) | ||
| DC Input | Recommended max. PV power: 45 kW Max. input voltage: 1100 V Rated voltage: 600 V Start-up voltage: 180 V MPPT voltage range: 180 - 1000 V Max. input current: 42 A / 42 A / 42 A Max. short-circuit current: 52.5 A / 52.5 A / 52.5 A MPPT number / Max. input strings number: 3 / 6 |
|
| Solar Input | Yes | |
| Environment | ||
| Operating Temperature | -25°C to +60°C | |
| Physical Information | ||
| Color | White | |
| Dimension | 355 × 625 × 250 mm | |
| Weight | Approx. 26.5 kg | |
| Warranty Information | ||
| Warranty | 5 Year Warranty | |
