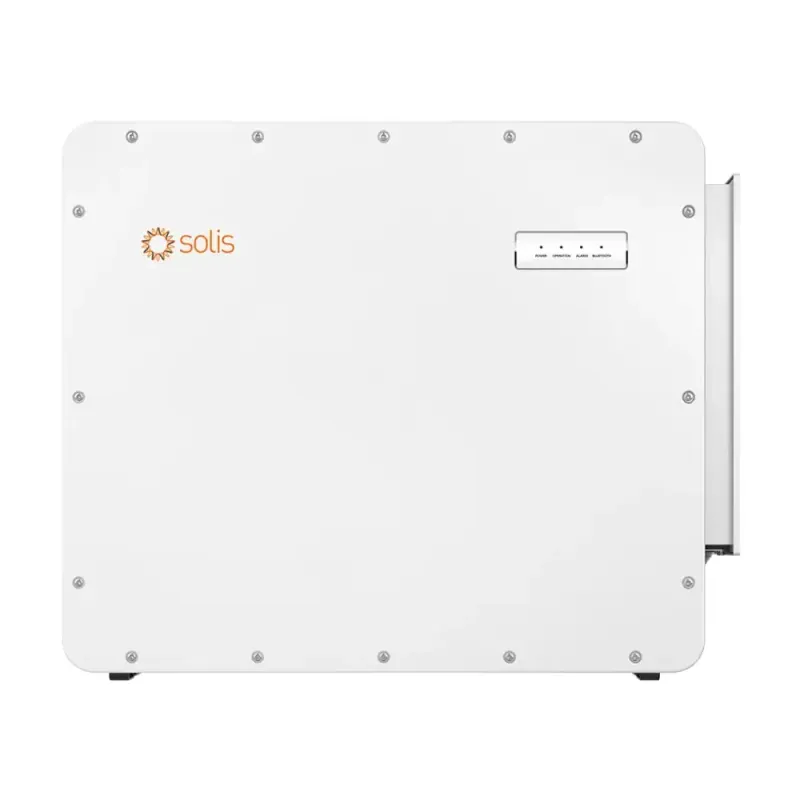

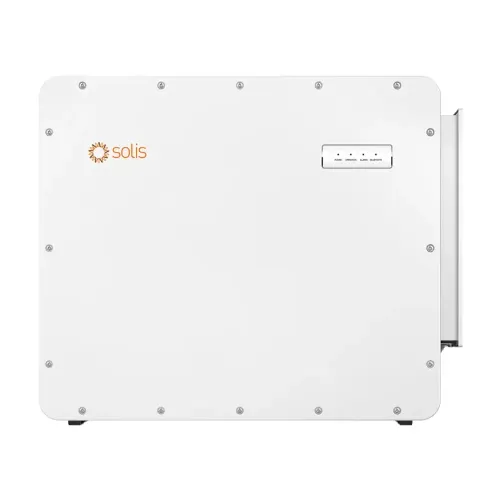

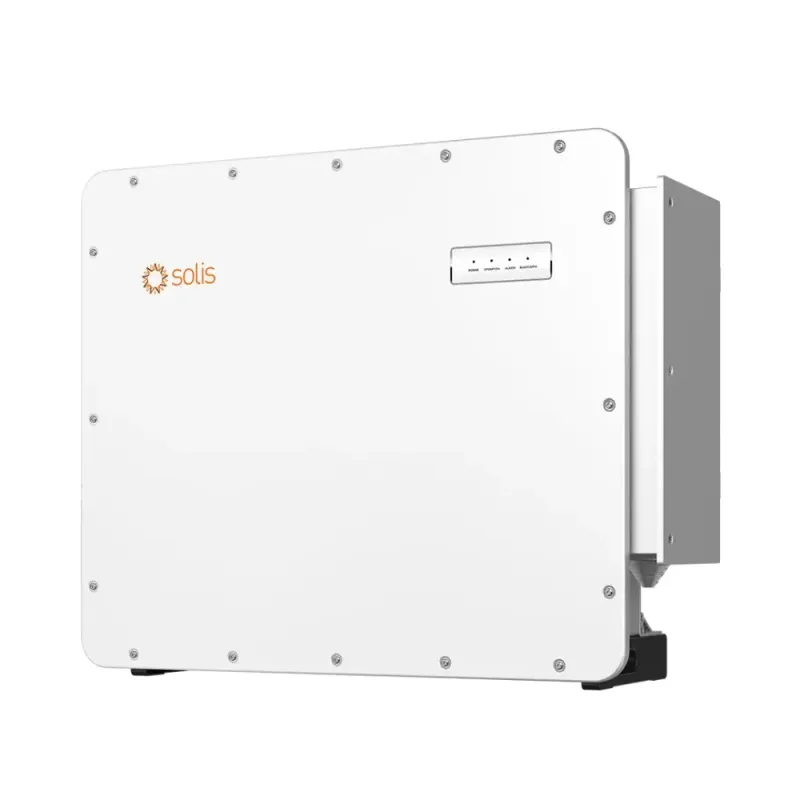

Solis S6-GC3P100K07-LV-ND 100kW Three Phase ON-Grid Solar Inverter
- Brand: Solis
- Product Code: 015328
- Availability: In Stock
৳577,100/-
Solis S6-GC3P100K07-LV-ND 100kW Three Phase ON-Grid Solar Inverter
The Solis S6-GC3P100K07-LV-ND 100 kW Three Phase ON-Grid Solar Inverter supports commercial and industrial solar installations requiring high power conversion. This 100 kW Solar Inverter delivers 100 kW rated AC output power and achieves maximum efficiency of 98.8%. Its transformerless topology supports efficient solar energy conversion. Designed for three-phase grid-tied applications, it operates with 220 V or 230 V rated grid voltage and supports 50 Hz or 60 Hz frequency.
98.8% Maximum Efficiency and High-Power Solar Conversion
Featuring advanced power conversion technology, the Solis S6-GC3P100K07-LV-ND functions as a Three Phase Solar Inverter for large-scale photovoltaic systems. It supports a maximum DC input voltage of 800 V and a rated input voltage of 450 V. The MPPT voltage range spans 160–800 V, with a startup voltage of 180 V. Its maximum DC/AC ratio exceeds 150%, supporting higher solar array capacity.
Advanced MPPT and String Monitoring

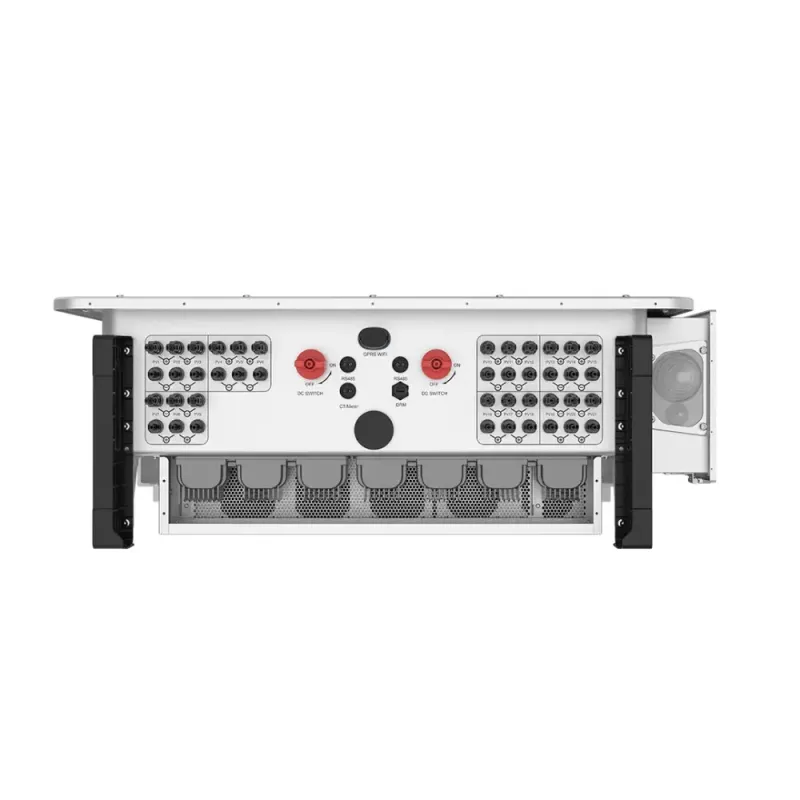

The Solis S6-GC3P100K07-LV-ND includes seven maximum power point trackers and supports up to 21 input strings. Each input accommodates a maximum current of 54 A, while the maximum short-circuit current reaches 75 A per tracker. String monitoring and I/V curve scanning help identify performance issues. These features support effective solar generation monitoring and system maintenance.
Comprehensive Protection and Grid Safety
Designed for demanding solar environments, the Solis S6-GC3P100K07-LV-ND includes IP66-rated protection against dust and water ingress. Its safety features include DC reverse-polarity protection, short-circuit protection, output overcurrent protection, and Type II DC/AC surge protection. Integrated AFCI 2.0, anti-islanding protection, grid monitoring, and temperature protection support safe operation. An integrated DC switch adds convenient isolation.
Smart Connectivity and System Control
The Solis S6-GC3P100K07-LV-ND offers Bluetooth connectivity, app control, and LED status indication for accessible system monitoring. Its night SVG function supports reactive power compensation when applicable. With a power factor above 0.99 at rated conditions and THDi below 3%, this ON-Grid solar inverter supports grid-compatible power delivery. Note that energy storage integration requires system compatibility verification.
Operating Conditions and Physical Specifications

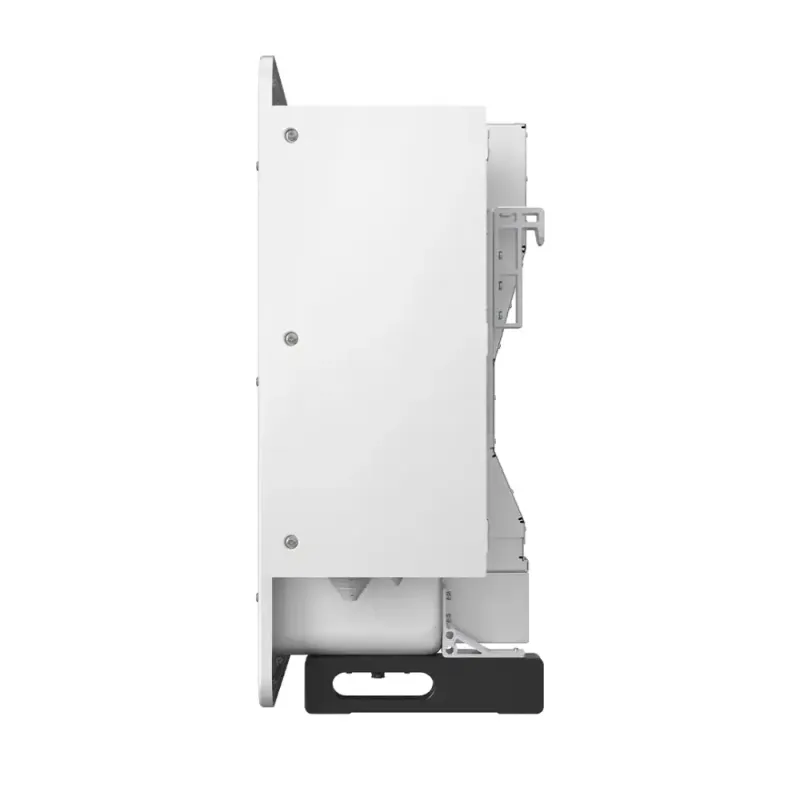

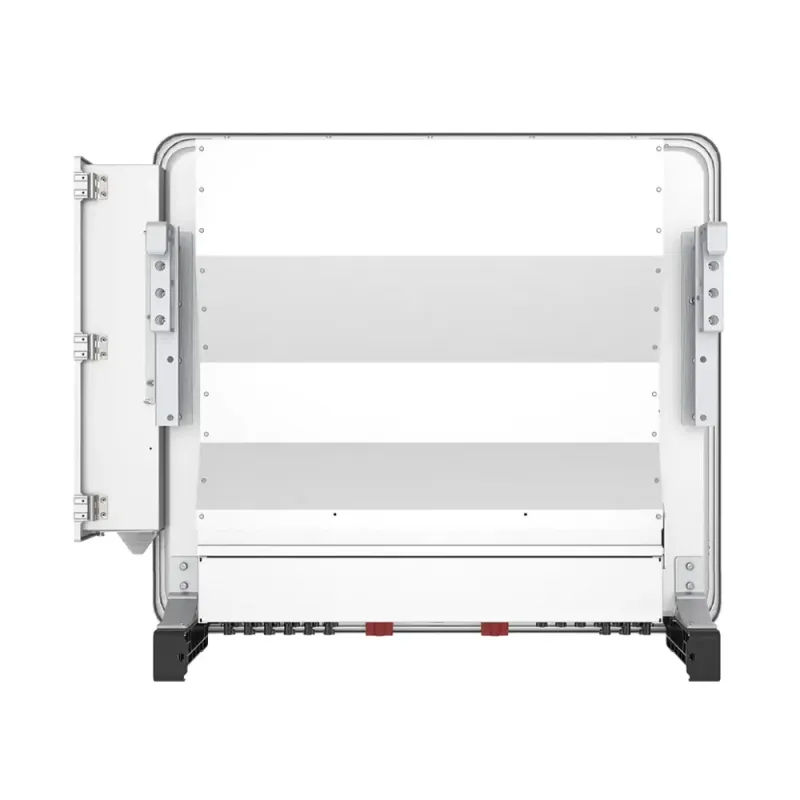

Built for outdoor installation, the Solis S6-GC3P100K07-LV-ND operates across temperatures from -25°C to +60°C. Its white enclosure measures 1035.5 × 869 × 396 mm and weighs approximately 105 kg. With 100 kW output capacity, multiple protection functions, and extensive string monitoring, this inverter suits commercial and industrial grid-connected solar projects.
Buy Solis S6-GC3P100K07-LV-ND 100kW Solar Inverter from Brotherhood IT
In Bangladesh, you can get original Solis S6-GC3P100K07-LV-ND 100kW Solar Inverter From Brotherhood IT. We have a large collection of latest Inverter to purchase. Order online from bhits.com.bd and get yours at the best price with delivery across Bangladesh. The Solis S6-GC3P100K07-LV-ND 100kW Solar Inverter comes with 5 Year warranty.
Specification
| General Information | ||
| Rated AC Output Power | 100 kW | |
| Connectivity | ||
| App Control | Yes | |
| Protection | DC reverse-polarity protection Short circuit protection Output over current protection Surge protection DC Type II / AC Type II Grid monitoring Anti-islanding protection Temperature protection Strings monitoring I/V Curve scanning Night SVG function Integrated AFCI 2.0 Integrated DC switch |
|
| Others | Topology: Transformerless > 150% DC/AC ratio Display: LED indicator & Bluetooth + APP |
|
| Output | ||
| AC Output | Max. output power: 100 kW Max. apparent output power: 100 kVA Rated grid voltage: 3/N/PE, 220 V / 230 V Rated grid frequency: 50 Hz / 60 Hz Power Factor: >0.99 (0.8 leading - 0.8 lagging) THDi: < 3% |
|
| Input (Charging) | ||
| DC Input | Max. input voltage: 800 V Rated voltage: 450 V Start-up voltage: 180 V MPPT voltage range: 160 - 800 V Max. input current: 7 × 54 A Max. short-circuit current: 7 × 75 A MPPT number / Max. input strings number: 7 / 21 |
|
| Solar Input | Yes | |
| Environment | ||
| Operating Temperature | -25°C to +60°C | |
| Physical Information | ||
| Color | White | |
| Dimension | 1035.5 × 869 × 396 mm | |
| Weight | Approx. 105 kg | |
| Warranty Information | ||
| Warranty | 5 Year Warranty | |
