Solis S6-EH3P30K-H 30kW Three Phase Hybrid Solar Inverter
- Brand: Solis
- Product Code: 015313
- Availability: In Stock
৳537,300/-
Solis S6-EH3P30K-H 30kW Three Phase Hybrid Solar Inverter
The Solis S6-EH3P30K-H 30kW Three Phase Hybrid Solar Inverter delivers efficient energy conversion for commercial and industrial solar installations. This Hybrid Solar Inverter provides 30kW rated output power with a maximum efficiency of 97.8%. Its three-phase, high-voltage design supports grid-connected solar systems and battery storage. With a recommended maximum PV array size of 60kW, it supports substantial solar energy generation.
Designed for high-voltage applications, the Solis S6-EH3P30K-H 30kW Hybrid Inverter supports lithium-ion batteries operating within a 150–800V voltage range. It features two battery inputs and a maximum charge or discharge current of 70A × 2. The inverter supports solar input voltages up to 1000V DC, with an MPPT voltage range of 150–850V. These specifications support effective solar generation and energy storage management.
The Solis S6-EH3P30K-H High Voltage Solar Inverter delivers 30kW grid-side and backup output power. Its backup switching time is less than 10 milliseconds, supporting rapid power transfer during interruptions. The inverter includes IP66 ingress protection, anti-islanding protection, DC reverse polarity protection, and over-current protection. Operating temperatures range from -25°C to +60°C, supporting installations across various environmental conditions.
For convenient monitoring, the Solis S6-EH3P30K-H 3 Phase Solar Inverter features a 7-inch LCD display, Bluetooth connectivity, and app-based control. Communication interfaces include CAN, RS485, and Ethernet for system integration. MC4 quick-connect plugs simplify photovoltaic connections, while lever terminals support battery connections. Measuring 530 × 880 × 290 mm and weighing approximately 73kg, this inverter offers advanced functionality for commercial solar power systems requiring high-capacity generation, battery storage, and backup support.
Buy Solis S6-EH3P30K-H 30kW Hybrid Solar Inverter from Brotherhood IT
In Bangladesh, you can get original Solis S6-EH3P30K-H 30kW Hybrid Solar Inverter From Brotherhood IT. We have a large collection of latest Inverter to purchase. Order online from bhits.com.bd and get yours at the best price with delivery across Bangladesh. The Solis S6-EH3P30K-H 30kW Hybrid Solar Inverter comes with 5 Year warranty.
Specification
| General Information | ||
| App Control | Yes | |
| Protection | Ingress protection IP66 | |

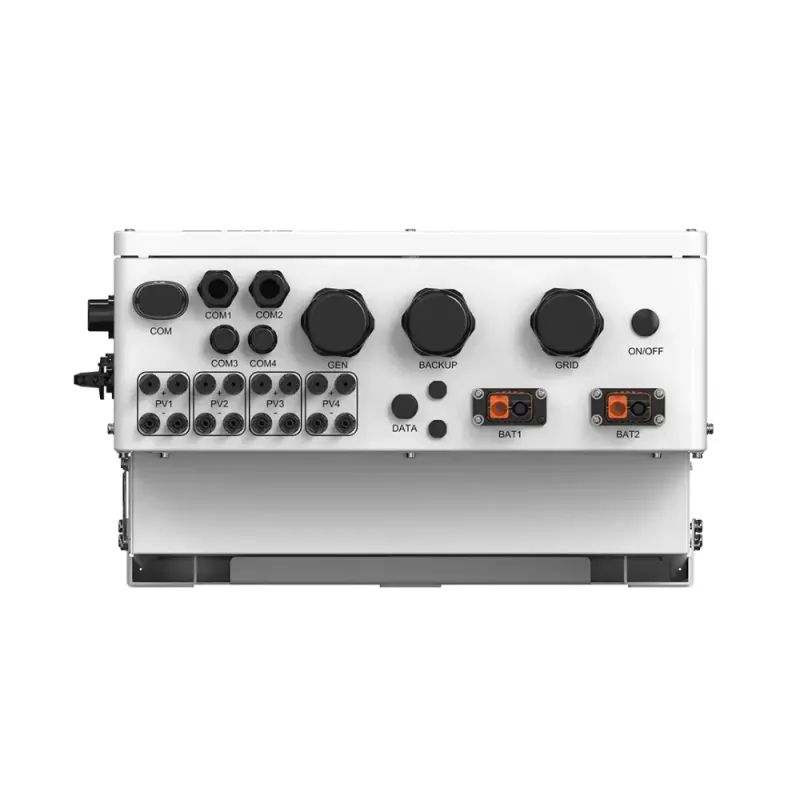

| Others | Display: 7.0" LCD display & Bluetooth + APP PV connection: MC4 Quick connection plug Battery connection: Lever terminal AC connection: Terminal Block Communication interface: CAN, RS485, Ethernet, |
|
| Output | ||
| AC Output | Output AC (Grid side) Rated output power: 30 kW Rated grid voltage: 3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V Rated grid output current: 45.6 A / 43.3 A Output AC (Back-up) Rated output power: 30 kW Back-up switch time: < 10 ms Rated output voltage: 3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V |
|
| Input (Charging) | ||
| AC Input | Input AC (Grid side) Max. AC passthrough current: 91.2 A / 86.6 A Rated input voltage: 3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V |
|
| DC Input | Supported Battery type: Li-ion Battery voltage range: 150 - 800 V Max. charge / discharge current: 70 A × 2 No. of battery inputs: 2 Communication: CAN / RS485 |
|
| Solar Input | DC (PV side) Recommended max. PV array size: 60 kW Max. usable PV input power: 60 kW Max. input voltage: 1000 V Rated voltage: 600 V Start-up voltage: 180 V MPPT voltage range: 150 - 850 V Max. input current: 40 A / 40 A / 40 A |
|
| Generator Input | Input AC (Generator side) Max. input power: 30 kW Rated input current: 45.6 A / 43.3 A Rated input voltage: 3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V Rated input frequency: 50 Hz / 60 Hz |
|
| Environment | ||
| Operating Temperature | -25°C to +60°C | |
| Physical Information | ||
| Color | White | |
| Dimension | 530 × 880 × 290 mm | |
| Weight | Approx. 73 kg |
|
| Warranty Information | ||
| Warranty | 5 Year Warranty | |
