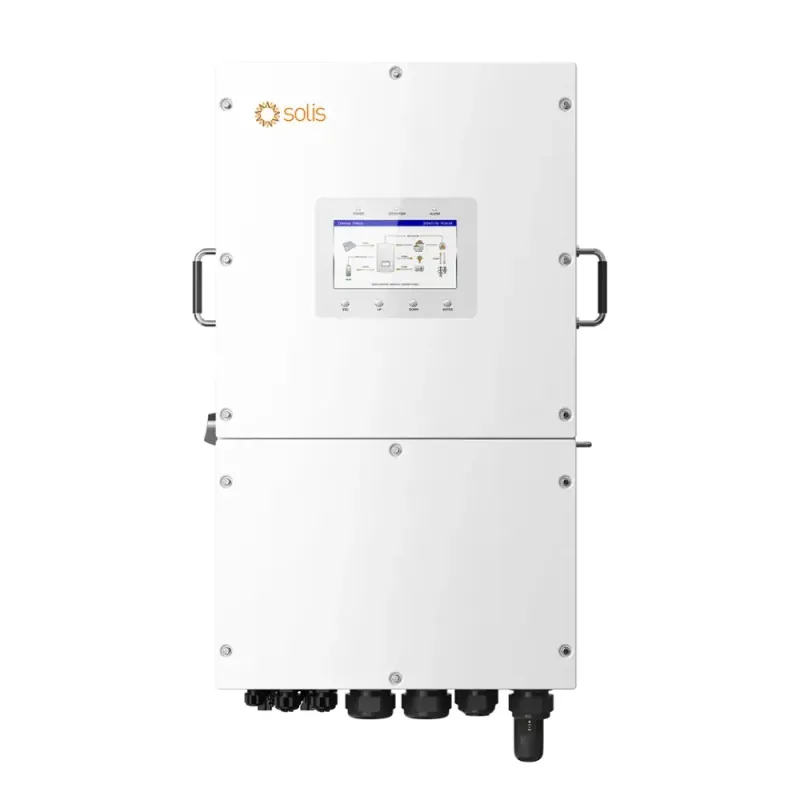

Solis S6-EH1P9.9K03-NV-YD-L 10kW Single Phase Hybrid Solar Inverter
- Brand: Solis
- Product Code: 015229
- Availability: In Stock
৳217,905/-
Solis S6-EH1P9.9K03-NV-YD-L 10kW Single Phase Hybrid Solar Inverter
The Solis S6-EH1P9.9K03-NV-YD-L is a single-phase hybrid solar inverter built to support solar energy generation and battery storage systems. This 10 kW solar inverter delivers 9.9 kW rated output power and achieves maximum efficiency of 97.6%. It supports grid-connected operation, battery charging, and backup power supply. The Solis solar inverter suits residential and commercial installations requiring low-voltage hybrid energy management.
High-Efficiency Solar Performance
Featuring a maximum PV input voltage of 550 V DC, the Solis S6-EH1P9.9K03-NV-YD-L hybrid inverter supports a recommended maximum PV array size of 19.8 kW. Its maximum usable PV input power reaches 15.8 kW. The MPPT voltage range spans 80–520 V, with three 40 A input channels. This hybrid inverter supports efficient solar energy conversion across suitable photovoltaic configurations.
Battery Storage and Backup Power
The Solis S6-EH1P9.9K03-NV-YD-L hybrid inverter supports lithium-ion and lead-acid batteries within a 40–60 V voltage range. Its maximum charge and discharge current reaches 208 A. The backup output provides 9.9 kW rated power, with a switching time below 10 milliseconds. This single-phase solar inverter also supports generator input and grid charging for flexible energy management.
Smart Monitoring and Safety Protection
Equipped with a 7-inch LCD, the Solis S6-EH1P9.9K03-NV-YD-L solar inverter offers app control through Wi-Fi, LAN, and Bluetooth connectivity. Its IP66-rated enclosure supports installation in demanding environments, while anti-islanding, DC reverse polarity, and surge protection enhance operational safety. This grid solar inverter operates between -25°C and +60°C, supporting various installation conditions.
Buy Solis S6-EH1P9.9K03-NV-YD-L 10kW Hybrid Solar Inverter from Brotherhood IT
In Bangladesh, you can get original Solis S6-EH1P9.9K03-NV-YD-L 10kW Hybrid Solar Inverter From Brotherhood IT. We have a large collection of latest Inverter to purchase. Order online from bhits.com.bd and get yours at the best price with delivery across Bangladesh. The Solis S6-EH1P9.9K03-NV-YD-L 10kW Hybrid Solar Inverter comes with 5 Year warranty.
Specification
| General Information | ||
| App Control | Yes | |
| Protection | Ingress protection IP66 | |
| Noise Level | < 65 dB(A) | |

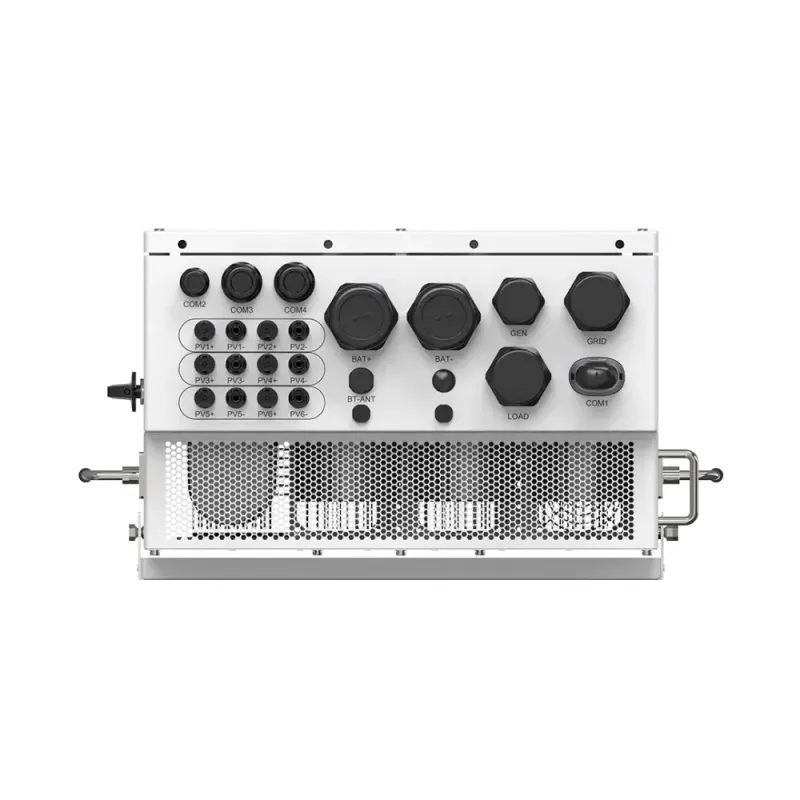

| Others | Display: 7.0" LCD & Bluetooth + APP PV connection MC4 connector Battery connection: Terminal Block AC connection: Terminal Block Communication interface: Standard: WIFI+LAN+Bluetooth, CAN-BMS, CAN-Parallel × 2, RS485-Meter, RS485, DRM, DI, DO × 2 |
|
| Output | ||
| AC Output | Output AC (Grid side) Rated output power: 9.9 kW Rated grid voltage: L/N/PE, 220 V / 230 V Rated grid output current: 45 A / 43.1 A Output AC (Back-up) Rated output power: 9.9 kW Back-up switch time: < 10 ms Rated output voltage: L/N/PE, 220 V / 230 V |
|
| Input (Charging) | ||
| AC Input | Input AC (Grid side) Max. input power: 14.8 kW Input voltage range: 187 - 253 V Max. input current: 67.5 A / 64.5 A |
|
| DC Input | Supported Battery type: Li-ion / Lead-acid Battery voltage range: 40 - 60 V Max. charge / discharge current: 208 A Communication: CAN / RS485 |
|
| Solar Input | Input (PV Side) Recommended max. PV array size: 19.8 kW Max. usable PV input power: 15.8 kW Max. input voltage: 550 V Rated voltage: 380 V Start-up voltage: 100 V MPPT voltage range: 80 - 520 V Max. current input: 40 A / 40 A / 40 A |
|
| Generator Input | Input AC (Generator side) Max. input power: 9.9 kW Max. input current: 45 A / 43.1 A Rated input frequency: 50 Hz / 60 Hz |
|
| Environment | ||
| Operating Temperature | -25°C to +60°C | |
| Physical Information | ||
| Color | White | |
| Dimension | 459 × 845 × 313 mm | |
| Weight | Approx. 55.5 kg | |
| Warranty Information | ||
| Warranty | 5 Year Warranty | |
