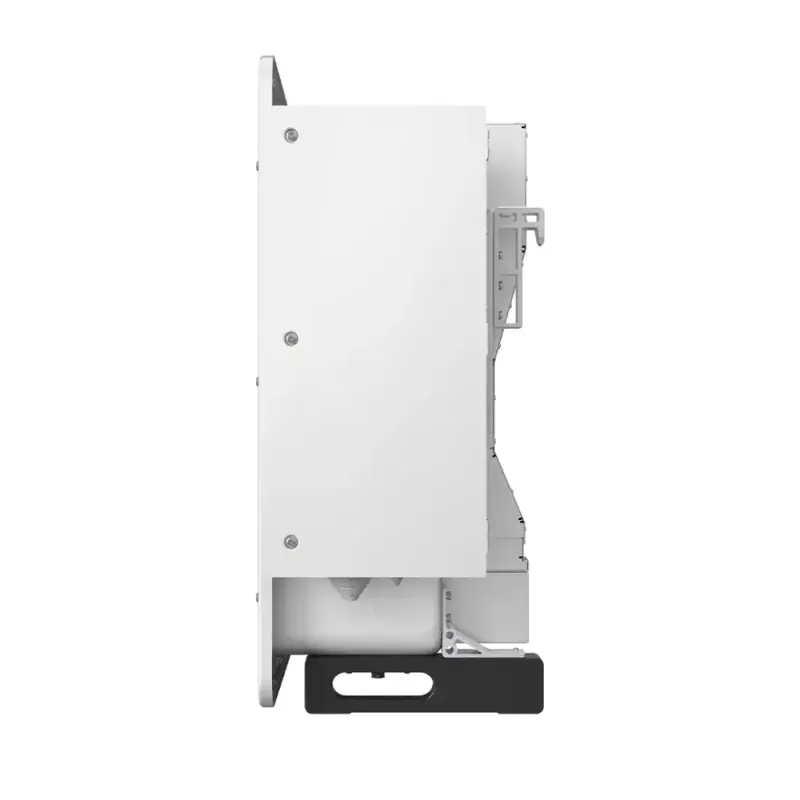

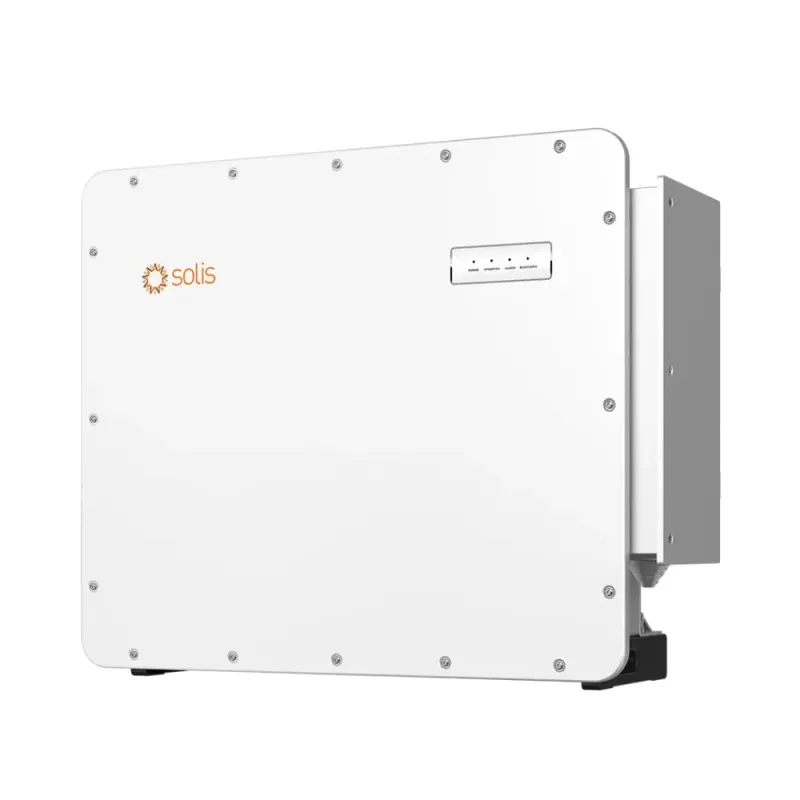

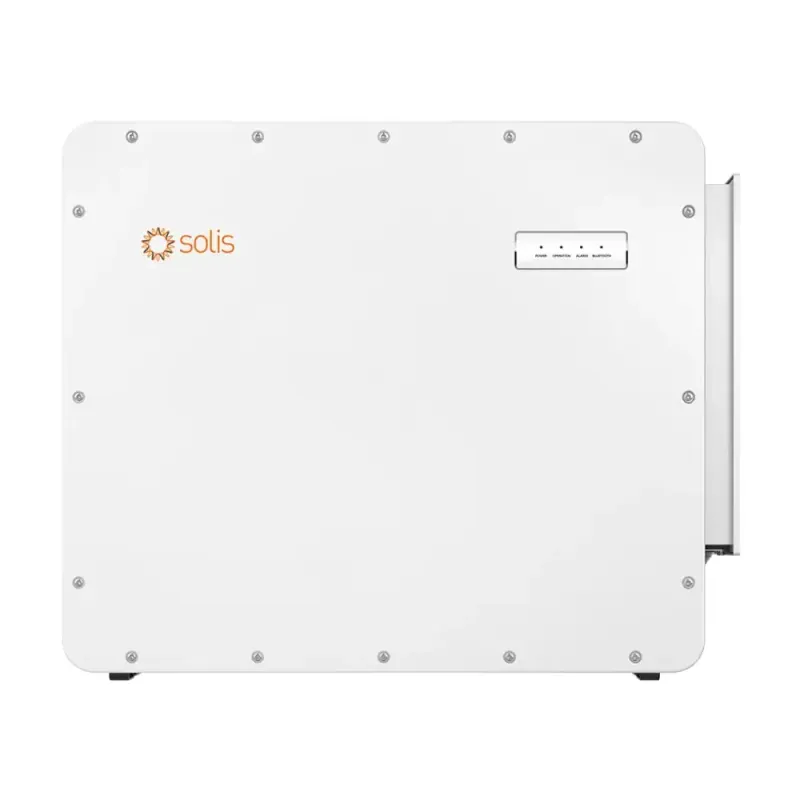

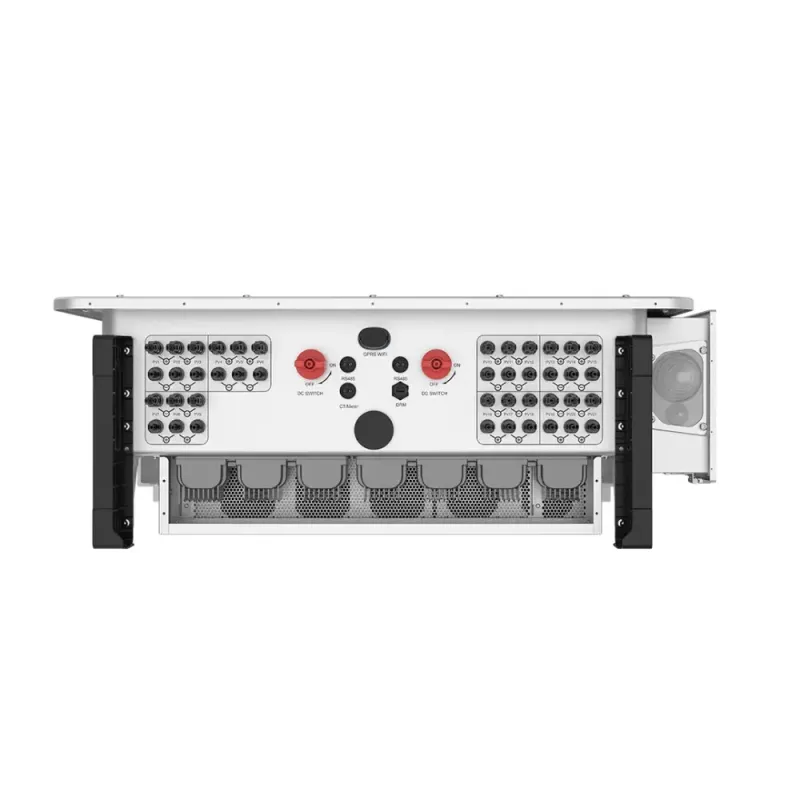

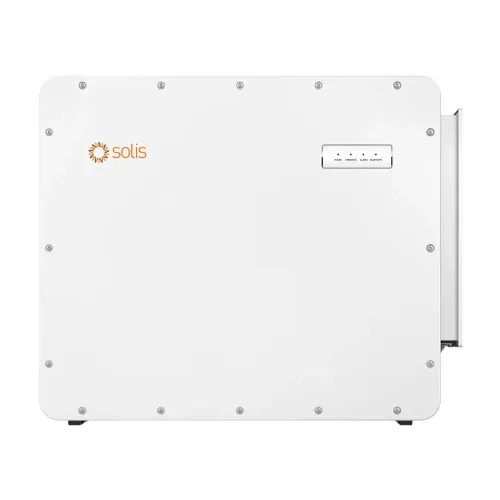

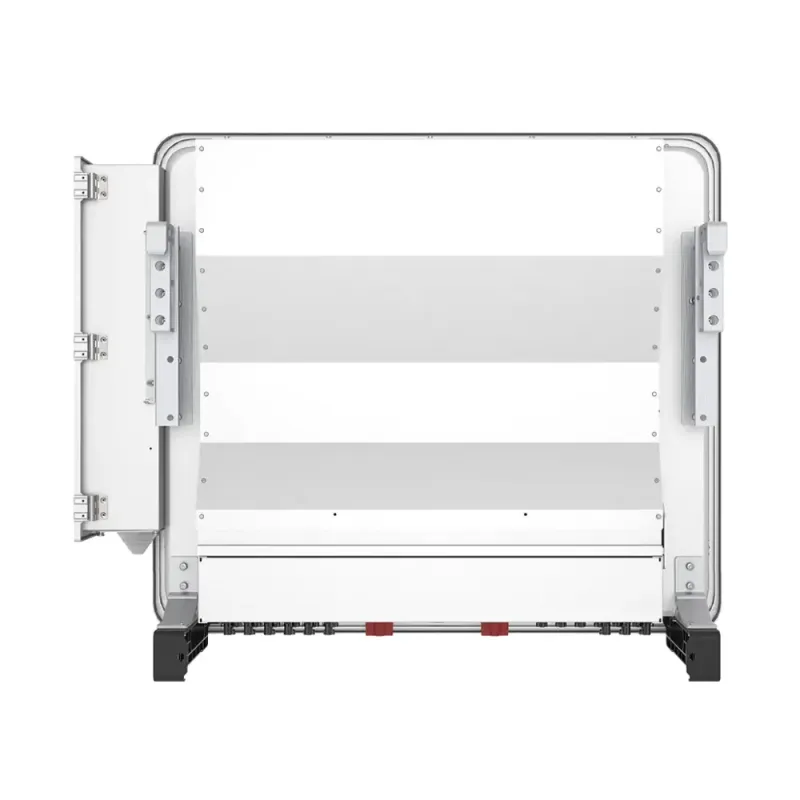

Solis S6-GC3P150K07 150kW Three Phase ON-Grid Solar Inverter
- Brand: Solis
- Product Code: 015334
- Availability: In Stock
৳726,350/-
Solis S6-GC3P150K07 150kW Three Phase ON-Grid Solar Inverter
The Solis S6-GC3P150K07 150 kW Three-Phase ON-Grid Solar Inverter delivers a rated AC output power of 150 kW. Designed for large-scale solar installations, this inverter supports efficient energy conversion for commercial and industrial applications. Its transformerless topology reduces system complexity, while a DC/AC ratio exceeding 150% supports higher solar array capacity. This 150 kW Solar Inverter offers advanced grid integration and intelligent monitoring features.
High-Efficiency AC Output Performance
The Solis S6-GC3P150K07 Three Phase Solar Inverter provides a maximum AC output power of 150 kW and apparent power of 165 kVA. It supports grid voltages of 220/380 V and 230/400 V, with 50 Hz or 60 Hz frequency compatibility. A power factor above 0.99 and total harmonic distortion below 3% support stable power delivery. Its power factor adjustment range extends from 0.8 leading to 0.8 lagging.
Advanced DC Input and MPPT Technology
Featuring seven maximum power point tracking (MPPT) channels, the Solis S6-GC3P150K07 accommodates up to 21 input strings. The DC input supports a maximum voltage of 1100 V and a rated voltage of 600 V. Its MPPT voltage range spans 160–800 V, with a startup voltage of 180 V. Maximum input current reaches 7 × 54 A, supporting efficient solar energy collection across multiple strings.
Smart Monitoring and App Control
The Solis S6-GC3P150K07 includes Bluetooth connectivity, app control, and LED indicators for convenient system monitoring. Integrated string monitoring and I/V curve scanning help users assess solar array performance. The night SVG function provides reactive power support after sunset. These intelligent functions help operators monitor system conditions and identify potential performance issues. This ON-Grid solar inverter supports improved visibility into solar generation and grid operation.
Comprehensive Protection and Grid Safety
The Solis S6-GC3P150K07 incorporates DC reverse-polarity, short-circuit, output overcurrent, and temperature protection. Grid monitoring and anti-islanding protection support safe grid-connected operation. An integrated DC switch provides convenient isolation during maintenance. These protective functions help safeguard the inverter and connected equipment against specified electrical faults and abnormal operating conditions.
Operating Conditions
Built for demanding installation environments, the Solis S6-GC3P150K07 operates within temperatures ranging from -25°C to +60°C. Its white enclosure measures 1035.5 × 869 × 396 mm and weighs approximately 105 kg. Although primarily an ON-Grid solar inverter, it is not specified as a battery-based energy storage solar inverter. Its high output capacity, advanced monitoring, and extensive protection features make it suitable for large commercial and industrial solar power systems.
Buy Solis S6-GC3P150K07 150kW Solar Inverter from Brotherhood IT
In Bangladesh, you can get original Solis S6-GC3P150K07 150kW Solar Inverter From Brotherhood IT. We have a large collection of latest Inverter to purchase. Order online from bhits.com.bd and get yours at the best price with delivery across Bangladesh. The Solis S6-GC3P150K07 150kW Solar Inverter comes with 5 Year warranty.
Specification
| General Information | ||
| Rated AC Output Power | 150 kW | |
| Connectivity | ||
| App Control | Yes | |
| Protection | DC reverse-polarity protection Short circuit protection Output over current protection Grid monitoring Anti-islanding protection Temperature protection Strings monitoring I/V Curve scanning Night SVG function Integrated DC switch |
|
| Others | Topology: Transformerless > 150% DC/AC ratio Display: LED indicator & Bluetooth + APP |
|
| Output | ||
| AC Output | Max. output power: 150 kW Max. apparent output power: 165 kVA Rated grid voltage: 3/N/PE, 220 V / 380 V, 230 V / 400 V Rated grid frequency: 50 Hz / 60 Hz Power Factor: >0.99 (0.8 leading - 0.8 lagging) THDi: < 3% |
|
| Input (Charging) | ||
| DC Input | Max. input voltage: 1100 V Rated voltage: 600 V Start-up voltage: 180 V MPPT voltage range: 160 - 800 V Max. input current: 7 × 54 A Max. short-circuit current: 7 × 75 A MPPT number / Max. input strings number: 7 / 21 |
|
| Solar Input | Yes | |
| Environment | ||
| Operating Temperature | -25°C to +60°C | |
| Physical Information | ||
| Color | White | |
| Dimension | 1035.5 × 869 × 396 mm | |
| Weight | Approx. 105 kg | |
| Warranty Information | ||
| Warranty | 5 Year Warranty | |
