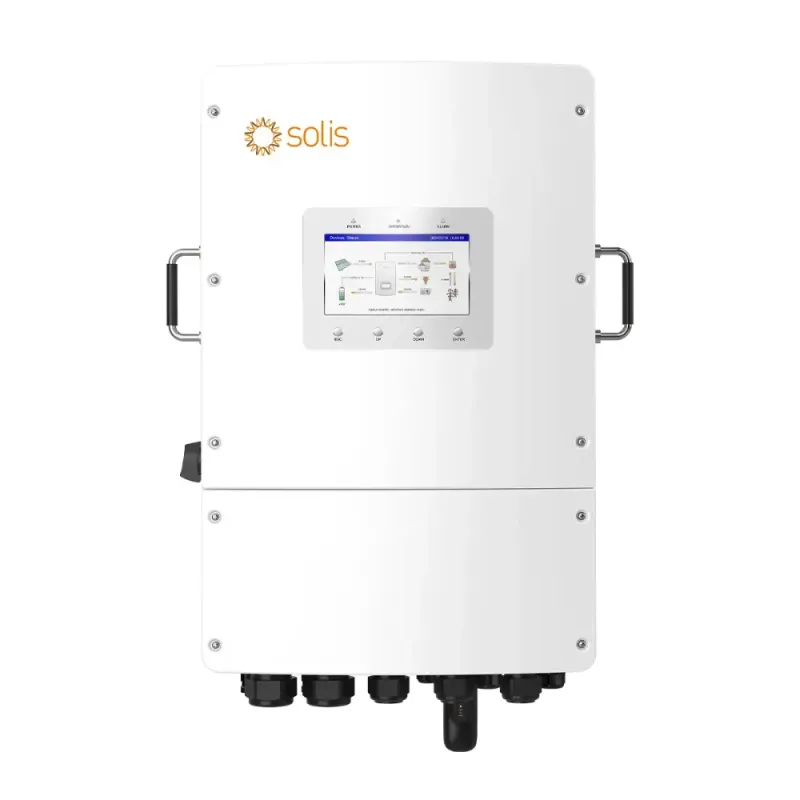

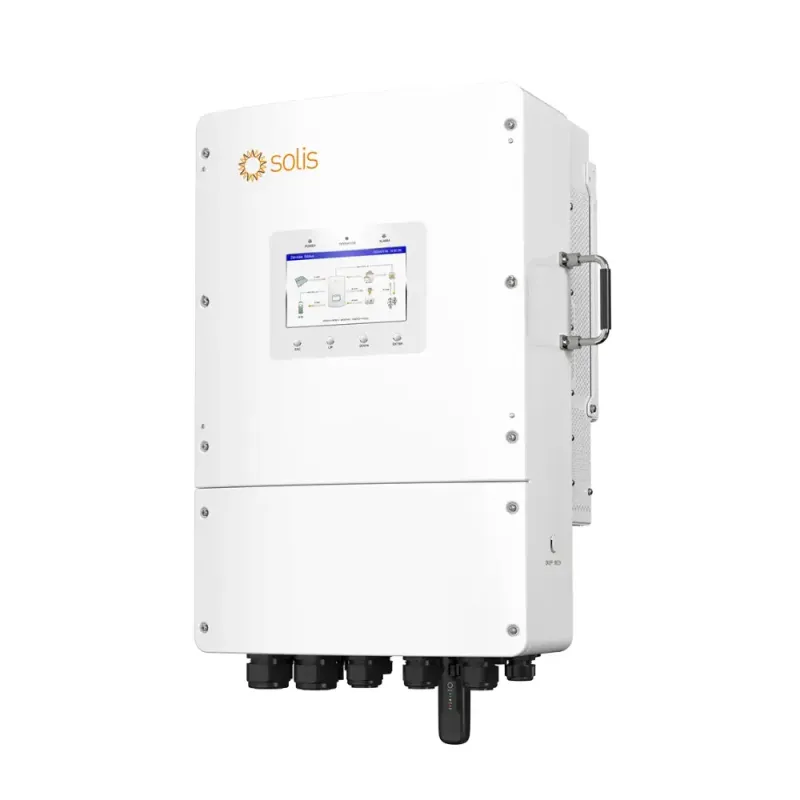

Solis S6-EH3P15K02-NV-YD-L 15KW Hybrid Solar Inverter
- Brand: Solis
- Product Code: 015297
- Availability: In Stock
৳294,520/-
Solis S6-EH3P15K02-NV-YD-L 15KW Hybrid Solar Inverter
The Solis S6-EH3P15K02-NV-YD-L 15KW Hybrid Solar Inverter is designed for efficient three-phase solar energy management. It delivers 15kW rated AC output power with a maximum conversion efficiency of 97.5%. Supporting low-voltage battery systems, this hybrid inverter offers a PV input capacity of up to 24kW. Its 1000V maximum PV input voltage and 200-850V MPPT voltage range support effective solar energy conversion.
For battery storage, the Solis S6-EH3P15K02-NV-YD-L 15KW Hybrid Solar Inverter supports lithium-ion and lead-acid batteries. Its 40-60V battery voltage range and 290A maximum charge or discharge current support efficient energy storage management. The inverter provides 15kW backup output with a switching time below 10 milliseconds. This feature helps maintain power supply during grid interruptions when supported by a suitable battery system.
The Solis S6-EH3P15K02-NV-YD-L 15KW Hybrid Solar Inverter includes app control, Bluetooth connectivity, and a 7-inch LCD display for monitoring and configuration. Its communication options include CAN, RS485, and Ethernet for system integration. IP66-rated protection helps shield the unit against dust and water exposure. Additional safety features include anti-islanding, DC reverse polarity protection, and over-current protection for reliable system operation.

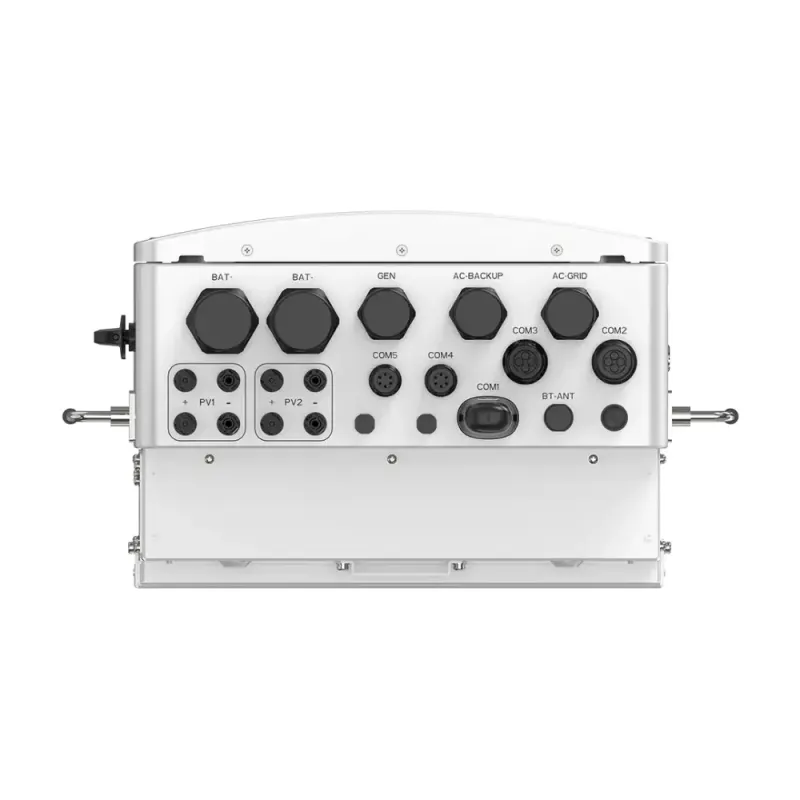

With an operating temperature range of -25°C to +60°C, the Solis S6-EH3P15K02-NV-YD-L 15KW Hybrid Solar Inverter suits various environmental conditions. It supports 380V and 400V grid connections, with generator input capacity up to 15kW. MC4 quick connectors simplify PV wiring, while screw terminals accommodate battery and AC connections. Measuring 430 × 660 × 305 mm and weighing approximately 42kg, this white hybrid inverter suits residential, commercial, and industrial solar installations requiring efficient energy management.
Buy Solis S6-EH3P15K02-NV-YD-L 15KW Hybrid Solar Inverter from Brotherhood IT
In Bangladesh, you can get original Solis S6-EH3P15K02-NV-YD-L 15KW Hybrid Inverter From Brotherhood IT. We have a large collection of latest Inverter to purchase. Order online from bhits.com.bd and get yours at the best price with delivery across Bangladesh. The Solis S6-EH3P15K02-NV-YD-L 15KW Hybrid Inverter comes with 5 Year warranty.
Specification
| General Information | ||
| App Control | Yes | |
| Protection | Ingress protection IP66 | |
| Noise Level | < 65 dB(A) | |
| Others | Display: 7.0" LCD display & Bluetooth + APP PV connection: MC4 Quick connection plug Battery connection: Screw terminal AC connection: Screw terminal Communication interface: CAN, RS485, Ethernet, |
|
| Output | ||
| AC Output | Output AC (Grid side) Rated output power: 15 kW Rated grid voltage: 380 V / 400 V Rated grid output current: 22.8 A / 21.7 A Output AC (Back-up) Rated output power: 15 kW Back-up switch time: < 10 ms Rated output voltage: 3/N/PE, 380 V / 400 V |
|
| Input (Charging) | ||
| AC Input | Input AC (Grid side) Max. input power: 15 kW Input voltage range: 323 - 460 V Max. input current: 34.2 A / 32.5 A |
|
| DC Input | Supported Battery type: Li-ion / Lead-acid Battery voltage range: 40 - 60 V Max. charge / discharge current: 290 A Communication: CAN / RS485 |
|
| Solar Input | Input DC (PV Side) Max. usable PV input power: 24 kW Max. input voltage: 1000 V Rated voltage: 550 V Start-up voltage: 160 V MPPT voltage range: 200 - 850 V |
|
| Generator Input | Input AC (Generator side) Max. input power: 15 kW Rated input voltage: 18.2 A 22.8 A Rated input voltage: 3/N/PE, 380 V / 400 V Rated input frequency: 50 Hz / 60 Hz |
|
| Environment | ||
| Operating Temperature | -25°C to +60°C | |
| Physical Information | ||
| Color | White | |
| Dimension | 430 × 660 × 305 mm | |
| Weight | Approx. 42 kg |
|
| Warranty Information | ||
| Warranty | 5 Year Warranty | |
