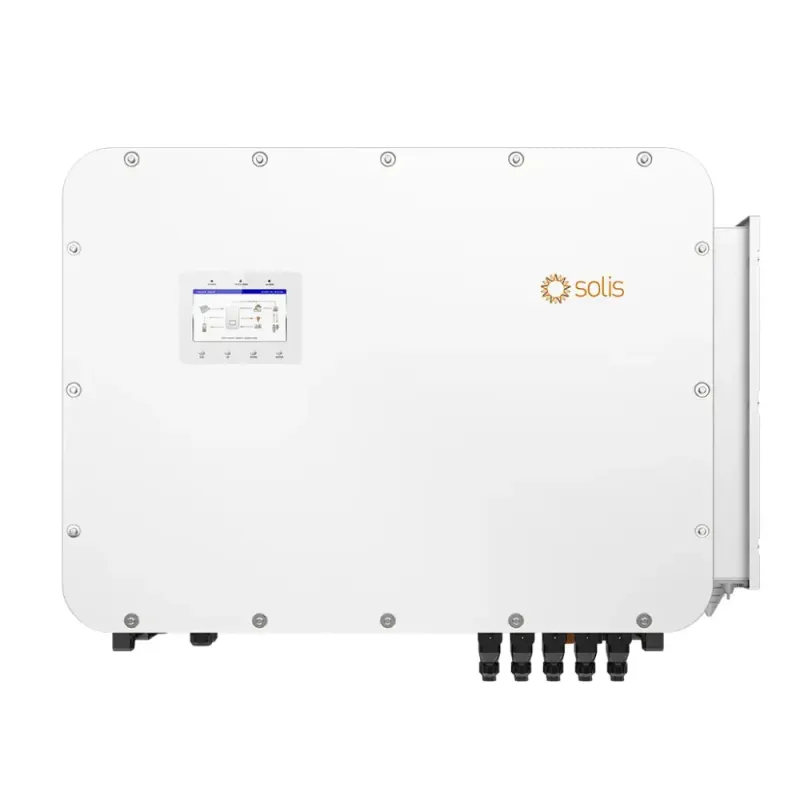

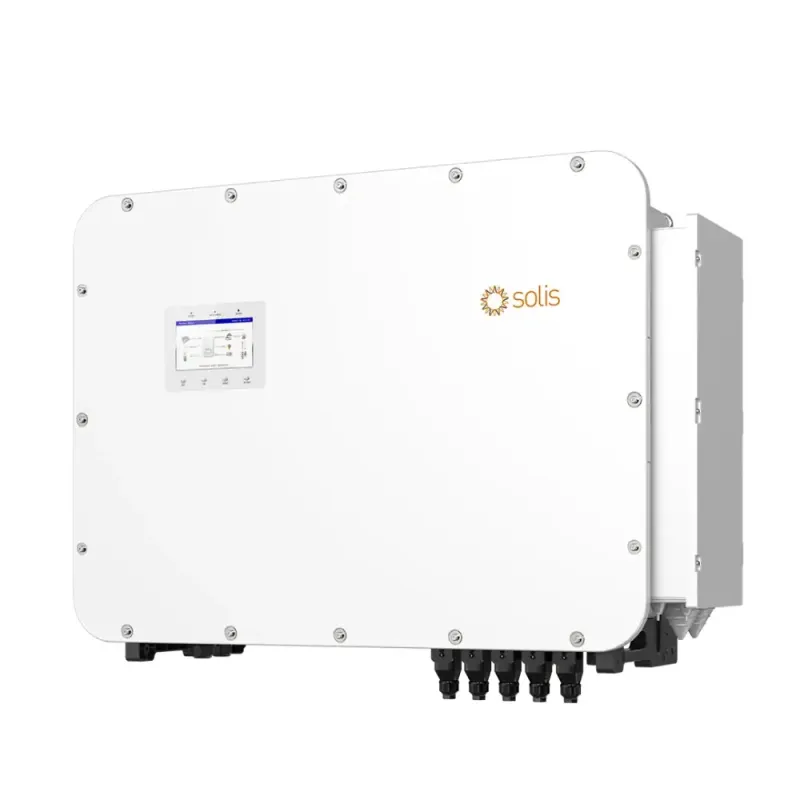

Solis S6-EH3P125K-NV-YD-H 125kW Three Phase Hybrid Solar Inverter
The Solis S6-EH3P125K-NV-YD-H 125kW Three Phase Hybrid Solar Inverter is a high-capacity hybrid solution designed for commercial and industrial solar installations. This 125kW Solar Inverter combines photovoltaic power generation, battery storage, grid connectivity, and backup functionality. With a maximum efficiency of 97.5%, it supports efficient energy conversion. Its three-phase architecture suits installations requiring substantial power output and advanced energy management.
High-Efficiency Three Phase Solar Inverter
Featuring a rated output power of 125kW, the Solis S6-EH3P125K-NV-YD-H Solar Inverter delivers three-phase AC power for demanding electrical loads. It supports grid voltages of 220/380V and 230/400V. The inverter provides a maximum usable PV input power of 250kW. Its ten MPPT trackers and support for twenty input strings enable flexible solar array configuration.
High Voltage Solar Inverter and Battery Compatibility
The Solis S6-EH3P125K-NV-YD-H Solar Inverter operates with a photovoltaic input voltage of up to 1000V DC. Its MPPT voltage range spans 150–850V, with a startup voltage of 180V. This High Voltage solar inverter supports lithium-ion batteries within a 300–950V range. Two battery inputs and charging or discharging currents of up to 100A per channel support substantial energy storage capacity.
Advanced Energy Storage and Backup Functionality
As an energy storage solar inverter, the Solis S6-EH3P125K-NV-YD-H Solar Inverter integrates solar generation, battery charging, and grid power management. Its rated backup output reaches 125kW, with a switching time below 10 milliseconds. Generator input support provides another energy source for compatible installations. These features help businesses manage electricity supply and maintain critical operations during grid interruptions.
Smart Monitoring

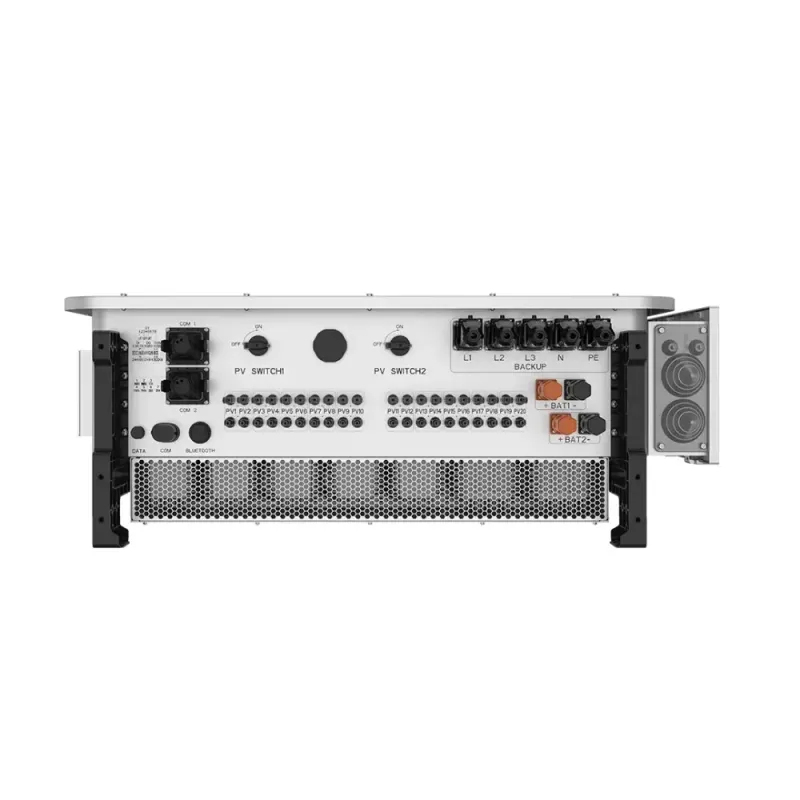

The Solis S6-EH3P125K-NV-YD-H Solar Inverter includes a 7-inch LCD display, Bluetooth connectivity, and app-based control. Standard communication options include Wi-Fi, LAN, Bluetooth, CAN-BMS, CAN-Parallel, RS485, and digital input/output interfaces. MC4 quick-connect plugs simplify photovoltaic connections, while terminal connectors support battery and AC connections. These interfaces facilitate system monitoring and integration with compatible equipment.
IP66 Protection
Built for demanding installation environments, the Solis S6-EH3P125K-NV-YD-H Solar Inverter features an IP66-rated enclosure. Protection functions include anti-islanding, DC reverse polarity protection, and overcurrent protection. Its operating temperature range extends from -25°C to +60°C. Measuring 1174 × 814 × 400mm and weighing approximately 170kg, this white inverter suits large-scale commercial and industrial solar energy projects.
Buy Solis S6-EH3P125K-NV-YD-H 125kW Hybrid Solar Inverter from Brotherhood IT
In Bangladesh, you can get original Solis S6-EH3P125K-NV-YD-H 125kW Hybrid Solar Inverter From Brotherhood IT. We have a large collection of latest Inverter to purchase. Order online from bhits.com.bd and get yours at the best price with delivery across Bangladesh. The Solis S6-EH3P125K-NV-YD-H 125kW Hybrid Solar Inverter comes with 5 Year warranty.
Specification
| General Information | ||
| App Control | Yes | |
| Protection | Ingress protection IP66 | |
| Others | Display: 7.0" LCD display & Bluetooth + APP PV connection: MC4 Quick connection plug Battery connection: Terminal connector AC connection: Terminal Block Communication interface: Standard: WIFI+LAN+Bluetooth, CAN-BMS × 2, CAN-Parallel × 2, LAN, RS485-Meter, RS485, DRM, DI × 5, DO × 4 |
|
| Output | ||
| AC Output | Output AC (Grid side) Rated output power: 125 kW Rated grid voltage: 3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V Rated grid output current: 189.9 A / 180.4 A Output AC (Back-up) Rated output power: 125 kW Back-up switch time: < 10 ms Rated output voltage: 3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V |
|
| Input (Charging) | ||
| AC Input | Input AC (Grid side) Max. input current: 250 A |
|
| DC Input | Supported Battery type: Li-ion Battery voltage range: 300 - 950 V Max. charge / discharge current: 100 A × 2 / 100 A × 2 No. of battery inputs: 2 Communication: CAN / RS485 |
|
| Solar Input | Input DC (PV side) Recommended max. PV array size: 250 kW Max. usable PV input power: 250 kW Max. input voltage: 1000 V Rated voltage: 600 V Start-up voltage: 180 V MPPT voltage range: 150 - 850 V Max. input current: 10 × 42 A MPPT number / Max. input strings number: 10 / 20 |
|
| Generator Input | Input AC (Generator side) Max. input power: 125 kW Rated input current: 189.9 A / 180.4 A Rated input voltage: 3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V Rated input frequency: 50 Hz / 60 Hz |
|
| Environment | ||
| Operating Temperature | -25°C to +60°C | |
| Physical Information | ||
| Color | White | |
| Dimension | 1174 × 814 × 400 mm | |
| Weight | Approx.170 kg |
|
| Warranty Information | ||
| Warranty | 5 Year Warranty | |
