Rahimafrooz RZ Solar SL 4KW/24V IPS with Battery

Rahimafrooz RZ Solar SL 4KW/24V IPS with Battery

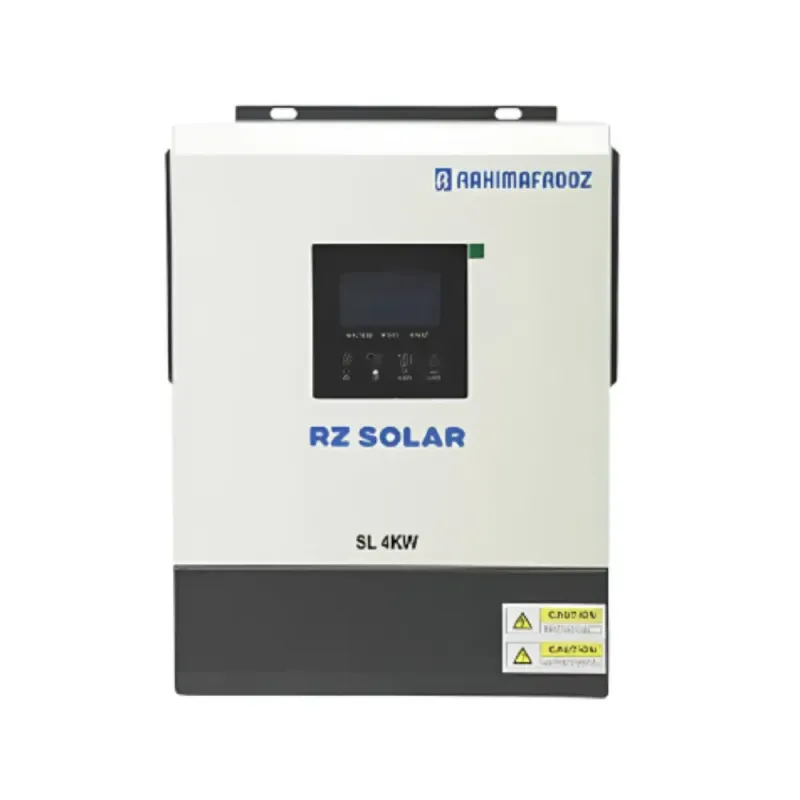

The Rahimafrooz RZ Solar SL 4KW/24V IPS with Battery delivers 4000W of output power and 8000W of surge power for five seconds. This strong surge capacity starts heavy loads like pumps and air conditioners without any trouble. It works as a 24V inverter system, so it suits homes and small offices that need steady backup. The built-in MPPT solar charge controller turns sunlight into stored energy and cuts your electricity bills. A 2.5-inch LCD display shows live system status. Built-in Wi-Fi and Bluetooth let you check and manage the unit from your phone. The package pairs the inverter with the Rahimafrooz IPB 200FT battery, so you get a complete solar inverter battery system in one purchase. It is a smart choice for anyone who wants reliable solar power backup during frequent outages.

4KW IPS Power Output and Transfer Performance

This Rahimafrooz inverter gives a 4000W output at 220 / 230 / 240Vac with a tolerance of ±5%. Your appliances therefore receive stable voltage even when the grid fluctuates. It switches to battery in 10ms in UPS mode, so computers and routers keep running without a restart. In APL mode, the transfer time is 20ms, which suits general home appliances. The no-load and full-load output both stay at 230Vac, and you can link up to six units in parallel for bigger power needs.

Solar IPS with MPPT Charge Controller

The Rahimafrooz RZ Solar SL 4KW/24V IPS accepts up to 5000W of solar panel capacity, which gives you plenty of room to grow your array. Its MPPT tracking range runs from 60 to 450Vdc, so it keeps harvesting power in changing light. The nominal PV voltage is 320Vdc, and the maximum input voltage (Voc) is 500Vdc. A PV input current of 27A moves solar energy into your battery quickly. The combined solar and AC charging current reaches 120A, while AC charging alone offers 100A for fast recharge on cloudy days.

Lead-Acid Battery Compatibility and Smart Protection

This Rahimafrooz RZ Solar SL 4KW/24V IPS with battery support accepts lead-acid, SMF, and Li-Ion battery types, so you can choose what fits your budget. A built-in BMS port makes lithium-ion battery connections simple and safe. The AC input cut-off voltages are 90Vac on the low side and 280Vac on the high side, which shields your devices from wild swings. Overload protection allows 10 seconds at 105% to 130% load and 5 seconds at 130% or more. Over-temperature, short-circuit, overcharge, and under-discharge protections add extra safety. The unit runs from -10°C to 50°C, keeps noise below 60 dB, and carries an IP21 rating.

200Ah Battery and Deep-Cycle Power Backup

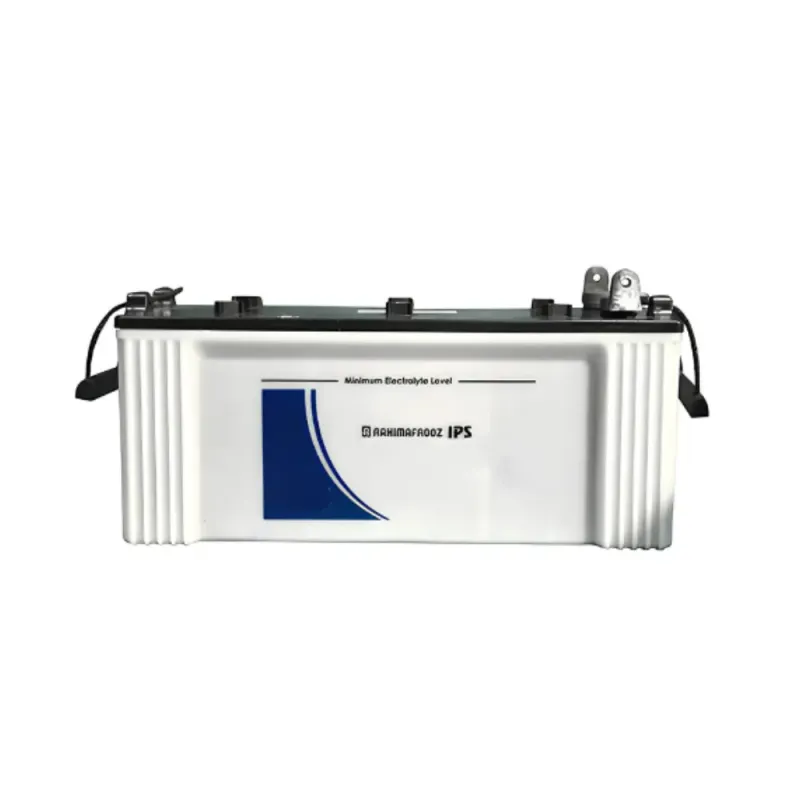

The Rahimafrooz IPB 200FT is a 12V, 200Ah flat-plate battery built for frequent power cuts. Its deep-cycle design handles repeated discharge and recharge without losing strength. This low-maintenance battery comes in dry or wet charged versions, so you can pick the one that suits your setup.

Buy Rahimafrooz RZ Solar SL 4KW/24V IPS with Battery from Brotherhood IT

In Bangladesh, you can get original Rahimafrooz RZ Solar SL 4KW/24V IPS with Battery From Brotherhood IT. We have a large collection of latest Rahimafrooz IPS to purchase. Order online from bhits.com.bd and get yours at the best price with delivery across Bangladesh. The Rahimafrooz RZ Solar SL 4KW/24V IPS with Battery comes with 3 years warranty.

Specification
