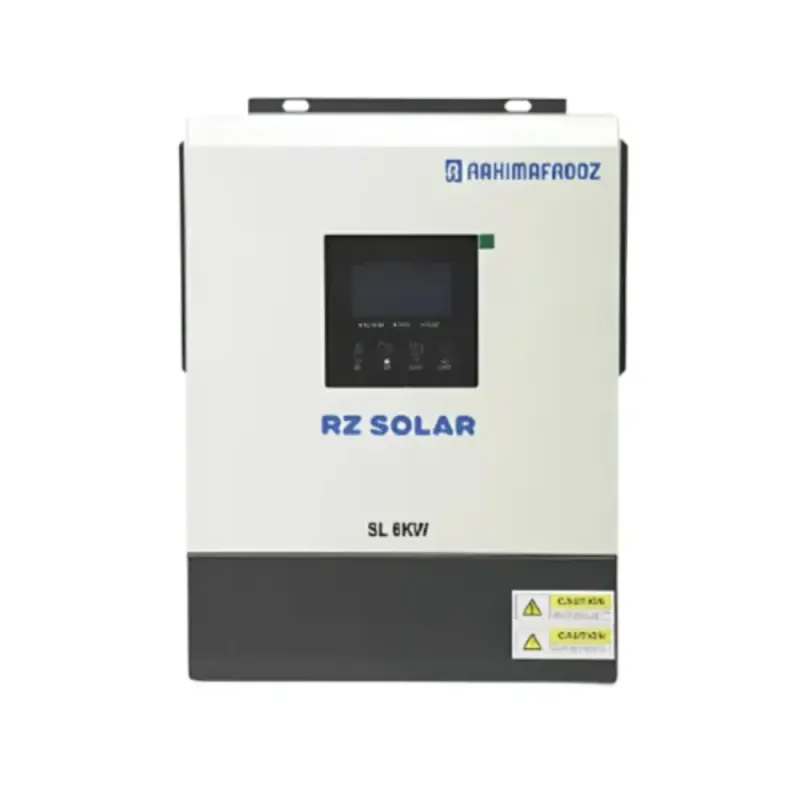

Rahimafrooz RZ Solar SL 6KW/48V Inverter

Rahimafrooz RZ Solar SL 6KW/48V Inverter

The Rahimafrooz RZ Solar SL 6KW/48V Inverter is a hybrid solar inverter that delivers 6000W of output power with a 12000W surge for five seconds. This peak rating lets you start heavy loads like pumps and air conditioners without tripping. The built-in MPPT solar tracking accepts up to 7000W of solar panel capacity, so you can harvest more energy from your roof. A 2.5-inch LCD display shows live system status at a glance. You can also monitor and manage the inverter through WiFi and Bluetooth compatibility. The unit works with lead-acid, SMF, lithium-ion, and user-defined battery settings, which gives you freedom to choose your storage. It is built for homes, shops, and small offices that need a reliable power backup with solar savings.

6000W Inverter Output and Battery Support

This Rahimafrooz RZ Solar SL 6KW/48V inverter produces 220, 230, or 240Vac with a tolerance of ±5%, which keeps your appliances running on steady power. The 48V inverter system gives you a no-load and full-load output of 230Vac, so voltage stays consistent as demand changes. AC charging reaches 100A, and the combined solar and AC charging current reaches 120A for faster battery recovery. The dedicated BMS port connects directly to lithium-ion batteries for safer communication and control. Users can rely on its 280Vac higher cut-off and 90Vac lower cut-off to handle unstable grid conditions with confidence.

MPPT Solar Inverter Performance

The Rahimafrooz RZ Solar SL 6KW/48V inverter is an MPPT solar inverter with a wide 60-450Vdc tracking range that adapts to different panel layouts. The nominal PV voltage of 360Vdc keeps conversion efficient during normal sunlight hours. A maximum input voltage of 500Vdc (Voc) gives you a safe margin on cold, bright mornings. The 27A PV input current supports high-capacity panel strings without bottlenecks. Transfer time is just 10ms in UPS mode and 20ms in APL mode, so computers and sensitive electronics stay on during outages.

Solar Inverter Protection and Durability

This Rahimafrooz RZ Solar SL 6KW/48V solar inverter protects your system with over-temperature, short-circuit, overcharge, and under-discharge safeguards. Overload protection allows 10 seconds at 105% to 130% load and 5 seconds at 130% load, which shields the unit from sudden spikes. It operates from -10°C to 50°C, so it stays reliable in hot summers and winter months. The IP21 rating guards against solid objects and light dripping water during indoor installation. Noise stays below 60dB, so you can place it in a living area without disturbance.

Buy Rahimafrooz RZ Solar SL 6KW/48V Inverter from Brotherhood IT

In Bangladesh, you can get original Rahimafrooz RZ Solar SL 6KW/48V Inverter From Brotherhood IT. We have a large collection of latest Rahimafrooz Solar Inverter to purchase. Order online from bhits.com.bd and get yours at the best price with delivery across Bangladesh. The Rahimafrooz RZ Solar SL 6KW/48V Inverter comes with 2 years warranty.
