Overview
KSTAR 650VA Offline UPS provides 650VA of backup power for computers and networking gear. Typical backup time is Max. 12 Min(Standard), depending on load. Battery: 12V Battery. Input voltage range: 230Vac. Transfer time: Typical 4-8ms.
Best for: desktop PCs, routers and small office equipment during load-shedding.
Key Highlights
- Capacity: 650VA
- Backup: Max. 12 Min(Standard)
- Battery: 12V Battery
- Input: 230Vac
- Output wave: Simulated Sine Wave
- Warranty: 1 Year Warranty
Buy the KSTAR 650VA Offline UPS from Brotherhood IT (bhits.com.bd) at the best price in Bangladesh with official warranty and delivery across the country.

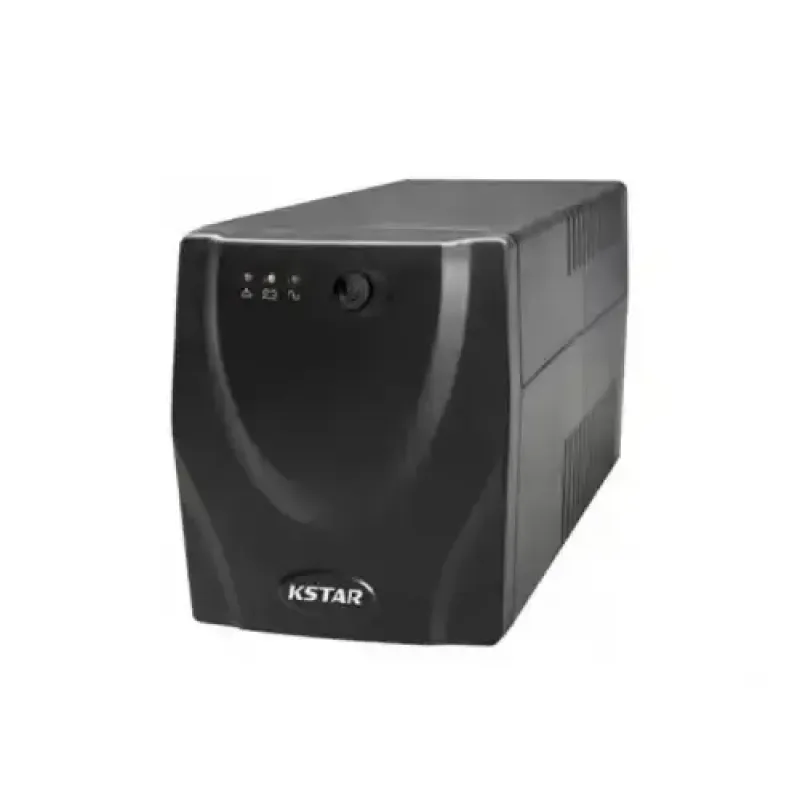

KSTAR 650VA Offline UPS
The KSTAR 650VA Offline UPS is built with a 230V Input Voltage, 230 (+/-10%) Output voltage with a 50 Hz frequency. This offline UPS has a Typical 4-8 ms, 13 ms max Transfer Rate, and a 24 V Battery with a weight of 7.5. It has intelligent battery discharging/ Charging management, Overload Protection, an Uninterruptible Power Supply, and compatibility with Generators. This KSTAR 650VA Offline UPS provides 01 year of warranty.
Under the following conditions, the warranty would not be provided:
• UPS burning due to thunder, abnormal overload, insect entrance and others.
• If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7)
• If the product is placed in a dusty and damp place.
• In the absence of Generator connectivity Without proper battery charge, the warranty will be void.
• Battery swelling and overcharging due to the wrong system voltage setting of the UPS.
Specification
| Main Feature | ||
| Capacity | 650VA | |
| Input Voltage | 230Vac |
|
| Output Voltage | 230 (+/-10%) | |
| Frequency (Battery Mode) | 50 Hz ±1 Hz |
|
| Battery | 12V Battery AC Voltage Regulation: 230+/-10%(Battery mode) Frequency Range: 50 Hz ±1 Hz(Battery mode) |
|
| Input Features | ||
| Frequency | 40 Hz (auto sensing)”}”>>40 Hz (auto sensing) |
|
| Voltage Range | 140 – 300 Vac |
|
| Output Features | ||
| Backup Time | Max. 12 Min(Standard) | |
| Voltage Range | 230 (+/-10%) | |
| Type of Wave | Simulated Sine Wave | |
| Transfer Time | Typical 4-8ms, 13ms max | |
| Physical Specification | ||
| Dimension | 301 x 101 x142.5 |
|
| Weight | Approx. 4.3 |
|
| Manufacture Warranty | ||
| Warranty | 1 Year Warranty Under the following conditions, the warranty would not be provided: • UPS burning due to thunder, abnormal overload, insect entrance and others. • If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7) • If the product is placed in a dusty and damp place. • In the absence of Generator connectivity Without proper battery charge, the warranty will be void. • Battery swelling and overcharging due to the wrong system voltage setting of the UPS. |
|
