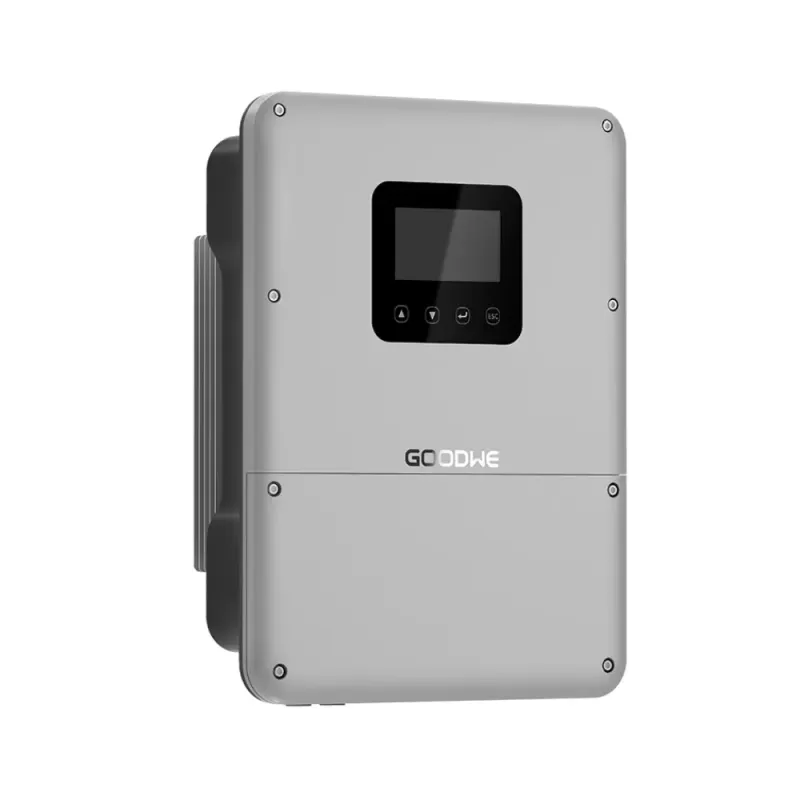

GoodWe GW6000-EO-G20 6kW Single Phase Off-Grid Hybrid Solar Inverter
- Brand: Goodwe
- Product Code: 015781
- Availability: In Stock
৳64,350/-
GoodWe GW6000-EO-G20 6kW Single Phase Off-Grid Hybrid Solar Inverter
The GoodWe GW6000-EO-G20 6kW Single Phase Off-Grid Hybrid Solar Inverter delivers 6,000W nominal output power for residential solar energy systems. It supports 220V and 230V output voltage with 50Hz and 60Hz grid frequency compatibility. Featuring 98.6% maximum efficiency, this inverter supports efficient energy conversion. Its switching time of 4ms or less enables quick power transfer during operation.
Advanced Solar Input and MPPT Technology
Equipped with two independent MPPTs, the GoodWe GW6000-EO-G20 supports efficient solar energy harvesting. It accepts up to 12kW maximum PV input power and 530V maximum input voltage. Each MPPT supports 21A maximum current and 26A short-circuit current. The MPPT operating voltage range spans 50V to 480V, supporting flexible solar panel configurations.
Battery Charging and Discharging Performance
The GoodWe GW6000-EO-G20 supports both lithium-ion and lead-acid batteries with a nominal 48V voltage. Its battery voltage range extends from 40V to 60V. The inverter delivers up to 130A continuous charging and discharging current. Maximum charging power reaches 6kW, while discharging power reaches 6.6kW for effective battery energy management.
Comprehensive Protection and Operating Conditions
Integrated protection features include PV reverse polarity, insulation resistance, string current and residual current monitoring. The GoodWe GW6000-EO-G20 also provides anti-islanding, AC overcurrent, short-circuit and overvoltage protection. Type III DC and Type II AC surge protection add electrical safeguards. Operating temperatures range from -25°C to +60°C, supporting various installation environments.
Buy GoodWe GW6000-EO-G20 6kW Solar Inverter from Brotherhood IT
In Bangladesh, you can get original GoodWe GW6000-EO-G20 6kW Solar Inverter From Brotherhood IT. We have a large collection of latest Solar Inverter to purchase. Order online from bhits.com.bd and get yours at the best price with delivery across Bangladesh. The GoodWe GW6000-EO-G20 6kW Solar Inverter comes with 5 years warranty.
Specification
| General Information | ||
| Protection | PV String Current Monitoring Integrated PV Insulation Resistance Detection Integrated Residual Current Monitoring Integrated PV Reverse Polarity Protection Integrated Anti-islanding Protection Integrated AC Overcurrent Protection Integrated AC Short Circuit Protection Integrated AC Overvoltage Protection Integrated DC Surge Protection Type III AC Surge Protection Type II |
|
| Output | ||
| AC Output | Nominal Output Power (W): 6000 Nominal Output Apparent Power (VA): 6000 Nominal Output Voltage (V): 220 / 230, L / N / PE Nominal AC Grid Frequency (Hz): 50 / 60 Max. Output Current (A): 35 |
|
| Input (Charging) | ||
| DC Input | Supported Battery Type: Li-Ion / Lead-acid Nominal Voltage (V): 48 Voltage Range (V): 40 ~ 60 Start-up Voltage (V): 44.2 Number of Battery Inputs: 1 Max. Continuous Charging Current (A): 130 Max. Continuous Discharging Current (A): 130 Max. Charging Power (kW): 6.0 Max. Discharging Power (kW): 6.6 |
|
| Solar Input | Max. Input Power (kW): 12.0 Max. Input Voltage (V): 530 MPPT Operating Voltage Range (V): 50 ~ 480 Start-up Voltage (V): 60 Nominal Input Voltage (V): 360 Max. MPPT Current (A): 21 / 21 Max. MPPT Short Circuit Current (A): 26 / 26 Number of MPPTs: 2 Number of Strings per MPPT: 1 |
|
| Environment | ||
| Operating Temperature | 25 ~ +60 (°C) | |
| Warranty Information | ||
| Warranty | 3 years | |
