GoodWe GW5000-SDT-30 5KW Three Phase On-Grid Solar Inverter
- Brand: Others
- Product Code: 015673
- Availability: In Stock
৳90,090/-

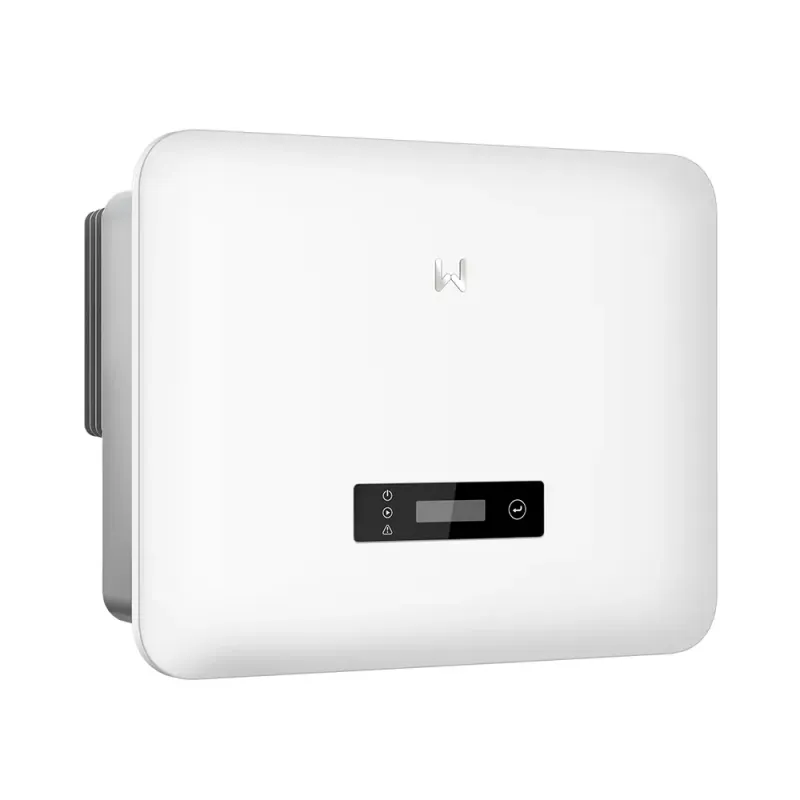

GoodWe GW5000-SDT-30 5KW Three Phase On-Grid Solar Inverter
The GoodWe GW5000-SDT-30 5kW Three Phase On-Grid Solar Inverter delivers a nominal output power of 5000W for solar energy systems. Designed for three-phase grid-connected installations, it supports nominal output voltages of 220/380V, 230/400V, and 240/415V. This On-Grid Solar Inverter operates at 50Hz or 60Hz grid frequencies, with a maximum output current of 8.4A. Its advanced power conversion technology supports efficient solar energy generation for residential and commercial applications. With a rated apparent output power of 5000VA, this inverter provides reliable performance for suitable three-phase solar installations.
The GoodWe GW5000-SDT-30 features a maximum DC input voltage of 1100V and an MPPT operating voltage range of 140V to 1000V. Its startup voltage is 160V, while two maximum power point trackers support solar array management. Built-in protection functions include PV string current monitoring, insulation resistance detection, residual current monitoring, and reverse polarity protection. Anti-islanding, AC short-circuit, and AC overvoltage protection further support safe system operation. Operating temperatures range from -25°C to +60°C, while the noise level remains below 25dB. These specifications make the inverter suitable for installations requiring effective monitoring and controlled power conversion.
For solar projects requiring efficient grid integration, the GoodWe GW5000-SDT-30 offers essential electrical protection and flexible voltage compatibility. Its three-phase output configuration supports different grid standards, while dual MPPT trackers help manage solar input across separate strings. The inverter's monitoring features assist with identifying electrical irregularities during operation. Its high DC voltage capacity also supports appropriately designed photovoltaic arrays. When selecting a 5kW Solar Inverter, installers should consider system voltage, panel configuration, grid requirements, and operating conditions. The GoodWe GW5000-SDT-30 is a Three Phase Inverter designed for grid-connected solar power systems, combining 5kW output capacity with integrated safety functions.
Buy GoodWe GW5000-SDT-30 5KW Three Phase On-Grid Solar Inverter from Brotherhood IT
In Bangladesh, you can get original GoodWe GW5000-SDT-30 5KW Three Phase On-Grid Solar Inverter From Brotherhood IT. We have a large collection of latest Solar Inverter to purchase. Order online from bhits.com.bd and get yours at the best price with delivery across Bangladesh. The GoodWe GW5000-SDT-30 5KW Three Phase On-Grid Solar Inverter comes with 5 years warranty.
Specification
| General Information | ||
| Protection | PV String Current Monitoring PV Insulation Resistance Detection Residual Current Monitoring PV Reverse Polarity Protection Anti-islanding Protection AC Short Circuit Protection AC Overvoltage Protection |
|
| Noise Level | <25dB | |
| Output | ||
| AC Output | Nominal Output Power (W): 5000 Nominal Output Apparent Power (VA): 5000 Nominal Output Voltage (V): 220 / 380, 230 / 400, 240 / 415, 3L / N / PE or 3L / PE Nominal AC Grid Frequency (Hz): 50 / 60 Max. Output Current (A): 8.4 |
|
| Input (Charging) | ||
| DC Input | Max. Input Voltage (V): 1100 MPPT Operating Voltage Range (V): 140 ~ 1000 Start-up Voltage (V): 160 Number of MPP Trackers: 2 |
|
| Environment | ||
| Operating Temperature | 25 ~ +60 (°C) | |
| Warranty Information | ||
| Warranty | 3 years | |
