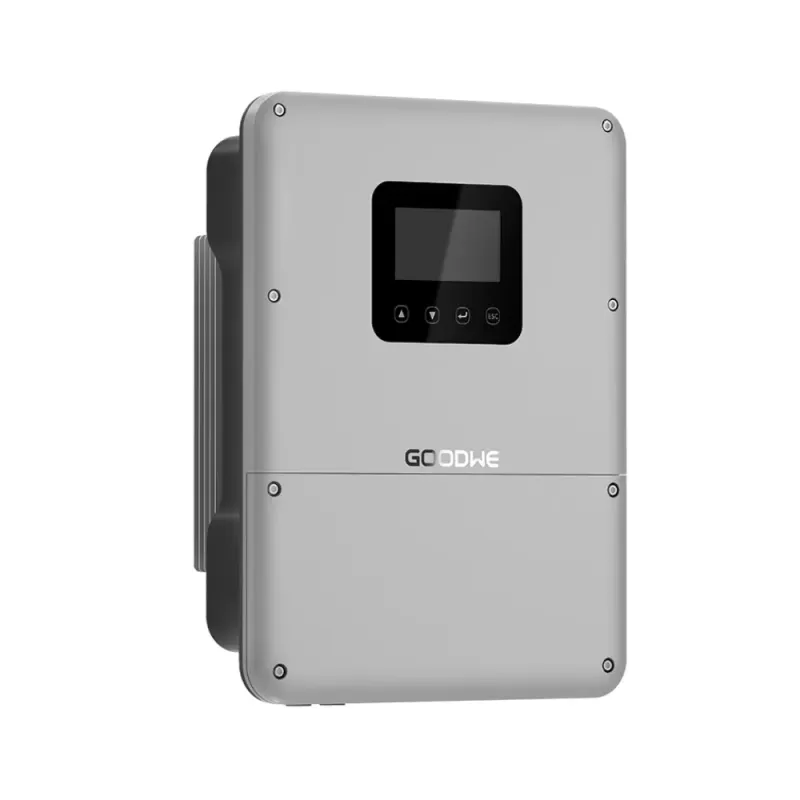

GoodWe GW5000-EO-G20 5kW Single Phase Off-Grid Hybrid Solar Inverter
- Brand: Goodwe
- Product Code: 015776
- Availability: In Stock
৳59,400/-
GoodWe GW5000-EO-G20 5kW Single Phase Off-Grid Hybrid Solar Inverter
The GoodWe GW5000-EO-G20 5kW Single Phase Off-Grid Hybrid Solar Inverter delivers efficient power conversion with a maximum efficiency of 98.6%. This advanced 5kW Solar Inverter features a switching time of 4ms or less, supporting fast power transitions. Its 5,000W nominal output power suits residential solar installations. The unit supports 220V and 230V output with 50Hz and 60Hz frequency options.
Off-Grid Hybrid Solar Performance
Designed for energy independence, the GoodWe GW5000-EO-G20 Off-Grid Solar Inverter supports lithium-ion and lead-acid batteries. Its 48V battery system operates within a 40–60V voltage range. The inverter provides maximum continuous charging and discharging currents of 120A. It also delivers up to 5.0kW charging power and 5.5kW discharging power. These features strengthen its capabilities as a Hybrid Solar Inverter.
Advanced Solar Input and Output
The GoodWe GW5000-EO-G20 Single Phase Solar Inverter supports up to 10kW maximum solar input power. It includes two MPPTs, each supporting one string. The MPPT operating voltage range extends from 50V to 480V. With a maximum input voltage of 530V and MPPT current of 21A per tracker, it supports efficient solar energy management. Its maximum output current reaches 35A.
Integrated Protection and Reliable Operation
Safety features make the GoodWe GW5000-EO-G20 5kW Solar Inverter suitable for demanding solar installations. Built-in protections include PV reverse polarity, insulation resistance detection, anti-islanding, and residual current monitoring. AC overcurrent, short circuit, and overvoltage protection add further safeguards. Type III DC and Type II AC surge protection improve electrical protection. The inverter operates across temperatures from -25°C to +60°C.
Buy GoodWe GW5000-EO-G20 5kW Solar Inverter from Brotherhood IT
In Bangladesh, you can get original GoodWe GW5000-EO-G20 5kW Solar Inverter From Brotherhood IT. We have a large collection of latest Solar Inverter to purchase. Order online from bhits.com.bd and get yours at the best price with delivery across Bangladesh. The GoodWe GW5000-EO-G20 5kW Solar Inverter comes with 5 years warranty.
Specification
| General Information | ||
| Protection | PV String Current Monitoring Integrated PV Insulation Resistance Detection Integrated Residual Current Monitoring Integrated PV Reverse Polarity Protection Integrated Anti-islanding Protection Integrated AC Overcurrent Protection Integrated AC Short Circuit Protection Integrated AC Overvoltage Protection Integrated DC Surge Protection Type III AC Surge Protection Type II |
|
| Output | ||
| AC Output | Nominal Output Power (W): 5000 Nominal Output Apparent Power (VA): 5000 Nominal Output Voltage (V): 220 / 230, L / N / PE Nominal AC Grid Frequency (Hz): 50 / 60 Max. Output Current (A): 35 |
|
| Input (Charging) | ||
| DC Input | Supported Battery Type: Li-Ion / Lead-acid Nominal Voltage (V): 48 Voltage Range (V): 40 ~ 60 Start-up Voltage (V): 44.2 Number of Battery Inputs: 1 Max. Continuous Charging Current (A): 120 Max. Continuous Discharging Current (A): 120 Max. Charging Power (kW): 5.0 Max. Discharging Power (kW): 5.5 |
|
| Solar Input | Max. Input Power (kW): 10.0 Max. Input Voltage (V): 530 MPPT Operating Voltage Range (V): 50 ~ 480 Start-up Voltage (V): 60 Nominal Input Voltage (V): 360 Max. MPPT Current (A): 21 / 21 Max. MPPT Short Circuit Current (A): 26 / 26 Number of MPPTs: 2 Number of Strings per MPPT: 1 |
|
| Environment | ||
| Operating Temperature | 25 ~ +60 (°C) | |
| Warranty Information | ||
| Warranty | 3 years | |
