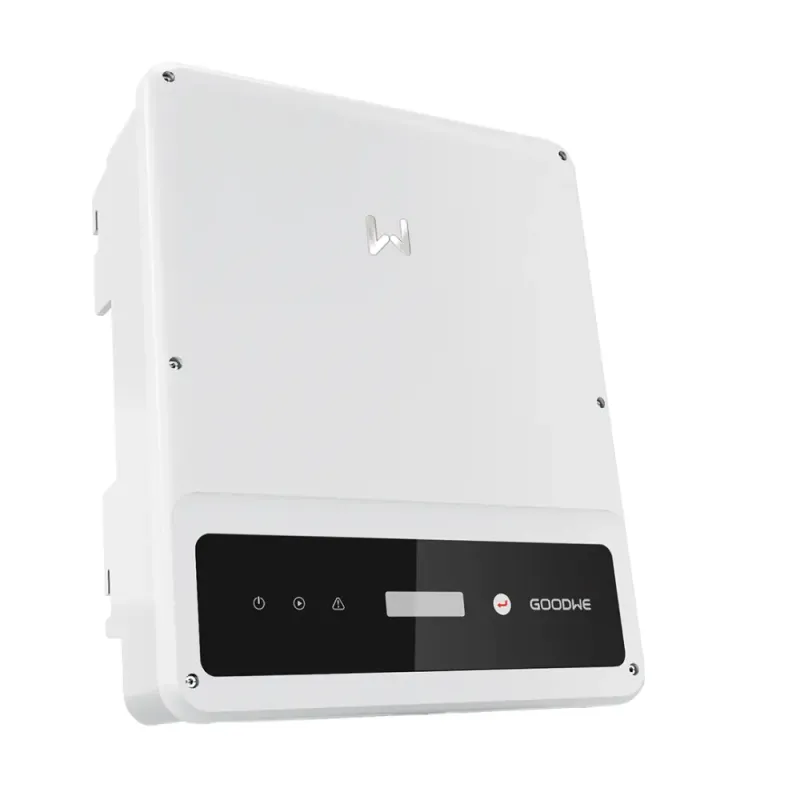

GoodWe GW5000-DNS-40 5KW Single Phase On-Grid Solar Inverter
- Brand: Others
- Product Code: 015672
- Availability: In Stock
৳54,450/-
GoodWe GW5000-DNS-40 5KW Single Phase On-Grid Solar Inverter
The GoodWe GW5000-DNS-40 5kW Single Phase On-Grid Solar Inverter delivers efficient power conversion for grid-connected solar energy systems. It delivers a nominal output power of 5,000W and supports 220V or 230V output voltage. With a maximum input voltage of 600V, this inverter supports flexible solar panel configurations. Its two maximum power point trackers (MPPTs) help manage solar energy generation. The GoodWe GW5000-DNS-40 On-Grid Solar Inverter operates at 50Hz or 60Hz grid frequencies, supporting different grid requirements.
Advanced Protection and Performance
Safety is essential for residential and small-scale solar installations. The GoodWe GW5000-DNS-40 includes PV string current monitoring and insulation resistance detection. It also features residual current monitoring and reverse polarity protection. Anti-islanding protection helps safeguard the grid during power interruptions. Additional features include AC short-circuit protection and AC overvoltage protection. These protective functions support safe inverter operation under specified conditions. Furthermore, its noise level remains below 25dB, supporting quieter operation in residential environments. These features make the GoodWe GW5000-DNS-40 a suitable choice for users seeking a reliable 5kW Solar Inverter.
Input Range and Operating Conditions
The inverter features an MPPT operating voltage range of 80V to 550V and a startup voltage of 80V. Its maximum output current reaches 22.8A, supporting its rated AC output performance. The GoodWe GW5000-DNS-40 operates within a specified temperature range of −25°C to +60°C, according to the provided specifications. This temperature range supports installation in various environmental conditions when installation guidelines are followed. For homeowners planning grid-connected solar installations, this Single Phase Inverter offers rated 5,000W output, multiple protection functions, and two MPPT trackers. The GoodWe GW5000-DNS-40 On-Grid Solar Inverter is worth considering for residential solar power applications.
Buy GoodWe GW5000-DNS-40 5KW Single Phase On-Grid Solar Inverter from Brotherhood IT
In Bangladesh, you can get original GoodWe GW5000-DNS-40 5KW Single Phase On-Grid Solar Inverter From Brotherhood IT. We have a large collection of latest Solar Inverter to purchase. Order online from bhits.com.bd and get yours at the best price with delivery across Bangladesh. The GoodWe GW5000-DNS-40 5KW Single Phase On-Grid Solar Inverter comes with 5 years warranty.
Specification
| General Information | ||
| Protection | PV String Current Monitoring PV Insulation Resistance Detection Residual Current Monitoring PV Reverse Polarity Protection Anti-islanding Protection AC Short Circuit Protection AC Overvoltage Protection |
|
| Noise Level | <25dB | |
| Output | ||
| AC Output | Nominal Output Power (W): 5000 Nominal Output Apparent Power (VA): 5000 Nominal Output Voltage (V): 220 / 230 Nominal AC Grid Frequency (Hz): 50 / 60 Max. Output Current (A): 22.8 |
|
| Input (Charging) | ||
| DC Input | Max. Input Voltage (V): 600 MPPT Operating Voltage Range (V): 80 ~ 550 Start-up Voltage (V): 80 Number of MPP Trackers: 2 |
|
| Environment | ||
| Operating Temperature | 25 ~ +60 (°C) | |
| Warranty Information | ||
| Warranty | 3 years | |
