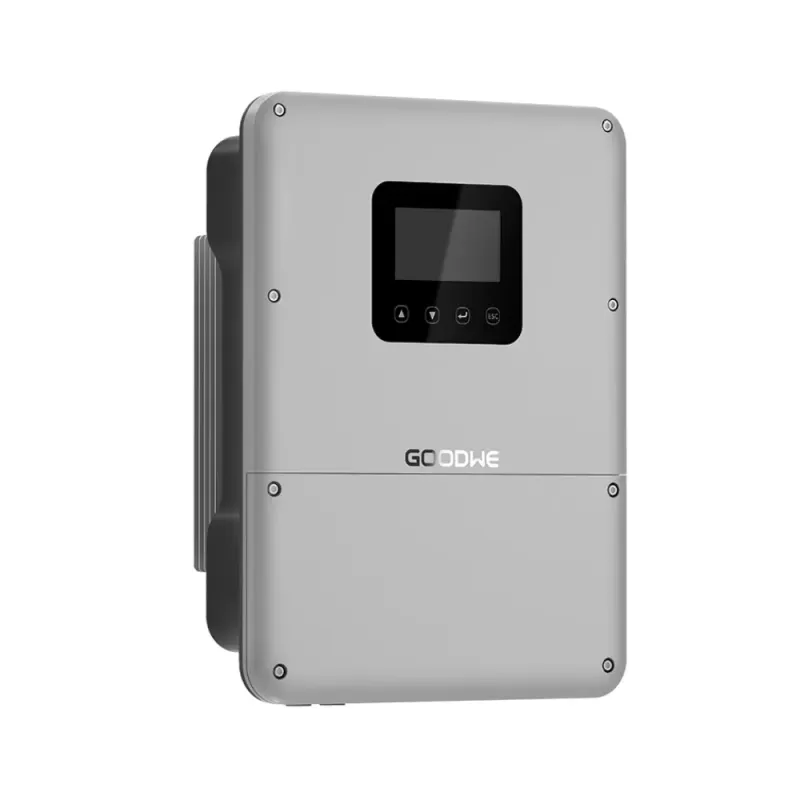

GoodWe GW3600-EO-G20 3.6kW Single Phase Off-Grid Hybrid Solar Inverter
- Brand: Goodwe
- Product Code: 015773
- Availability: In Stock
৳58,410/-
GoodWe GW3600-EO-G20 3.6kW Single Phase Off-Grid Hybrid Solar Inverter
The GoodWe GW3600-EO-G20 3.6kW Off-Grid Hybrid Solar Inverter is a single-phase hybrid solution designed for off-grid solar power systems. This 3.6kW Solar Inverter supports lithium-ion and lead-acid batteries. Its 48V battery system operates within a voltage range of 40-60V. With a maximum solar input capacity of 7.2kW, it supports efficient solar energy management.
Advanced Solar Input and Battery Charging
Equipped with one MPPT, the GoodWe GW3600-EO-G20 Off-Grid Solar Inverter supports one PV string. It offers an MPPT operating voltage range of 50-480V and a maximum input voltage of 530V. The maximum MPPT current reaches 21A. Additionally, its battery charging current reaches 90A, with maximum charging and discharging power of 3.6kW and 4.0kW, respectively.
Single Phase Output Performance
The GoodWe GW3600-EO-G20 Single Phase Solar Inverter supports 50Hz and 60Hz grid frequencies. Its specified output voltage configurations include 220/380V, 230/400V, and 240/415V. The inverter provides a maximum output current of 25A. Its specified nominal output power and apparent power are both 15,000W and 15,000VA. These specifications support various power system configurations.
Comprehensive Protection and Operating Conditions
For improved system protection, the GoodWe GW3600-EO-G20 Hybrid Solar Inverter includes PV insulation resistance detection and residual current monitoring. Additional safeguards cover reverse polarity, anti-islanding, AC overcurrent, short circuits, and overvoltage. Type III DC and Type II AC surge protection provide additional electrical safeguards. Its operating temperature range extends from -25°C to +60°C, supporting operation across different environmental conditions.
Buy GoodWe GW3600-EO-G20 3.6kW Solar Inverter from Brotherhood IT
In Bangladesh, you can get original GoodWe GW3600-EO-G20 3.6kW Solar Inverter From Brotherhood IT. We have a large collection of latest Solar Inverter to purchase. Order online from bhits.com.bd and get yours at the best price with delivery across Bangladesh. The GoodWe GW3600-EO-G20 3.6kW Solar Inverter comes with 5 years warranty.
Specification
| General Information | ||
| Protection | PV String Current Monitoring Integrated PV Insulation Resistance Detection Integrated Residual Current Monitoring Integrated PV Reverse Polarity Protection Integrated Anti-islanding Protection Integrated AC Overcurrent Protection Integrated AC Short Circuit Protection Integrated AC Overvoltage Protection Integrated DC Surge Protection Type III AC Surge Protection Type II |
|
| Output | ||
| AC Output | Nominal Output Power (W): 3600 Nominal Output Apparent Power (VA): 3600 Nominal Output Voltage (V): 220 / 230, L / N / PE Nominal AC Grid Frequency (Hz): 50 / 60 Max. Output Current (A): 35 |
|
| Input (Charging) | ||
| DC Input | Supported Battery Type: Li-Ion / Lead-acid Nominal Voltage (V): 48 Voltage Range (V): 40 ~ 60 Start-up Voltage (V): 44.2 Number of Battery Inputs: 1 Max. Continuous Charging Current (A): 90 Max. Continuous Discharging Current (A): 90 Max. Charging Power (kW): 3.6 Max. Discharging Power (kW): 4.0 |
|
| Solar Input | Max. Input Power (kW): 7.2 Max. Input Voltage (V): 530 MPPT Operating Voltage Range (V): 50 ~ 480 Start-up Voltage (V): 60 Nominal Input Voltage (V): 360 Max. MPPT Current (A): 21 Max. MPPT Short Circuit Current (A): 26 Number of MPPTs: 1 Number of Strings per MPPT: 1 |
|
| Environment | ||
| Operating Temperature | 25 ~ +60 (°C) | |
| Warranty Information | ||
| Warranty | 3 years | |
