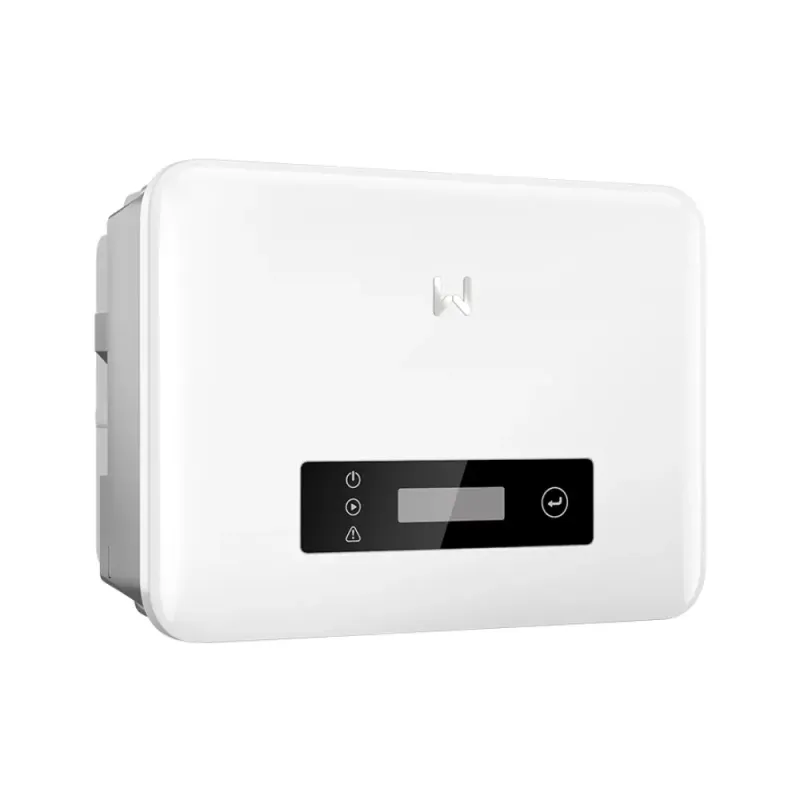

GoodWe GW3000-XS-30 3kW Single-Phase On-Grid Solar Inverter
- Brand: Gospower
- Product Code: 015657
- Availability: In Stock
৳36,630/-
GoodWe GW3000-XS-30 3kW Single-Phase On-Grid Solar Inverter
The GoodWe GW3000-XS-30 3000W solar inverter delivers 3kW nominal output power for residential solar installations. This single-phase unit connects solar photovoltaic systems to the electricity grid. The On-Grid Solar Inverter supports nominal output voltages of 220V, 230V, and 240V. It operates at grid frequencies of 50Hz or 60Hz, supporting different electrical requirements. With a maximum output current of 13.7A, this model supports efficient grid-connected solar power conversion.
High-Efficiency DC Input Specifications
Designed for solar energy conversion, the GoodWe GW3000-XS-30 Single Phase Solar Inverter accepts a maximum DC input voltage of 600V. Its MPPT operating voltage range spans 40V to 550V, while startup requires 50V. The inverter supports a maximum input current of 16A per MPPT. One maximum power point tracker manages the connected solar string. These specifications help maintain suitable operating conditions across changing solar generation levels.
Advanced Protection and Safety Features
The GoodWe GW3000-XS-30 On-Grid Solar Inverter includes multiple protective functions for system monitoring and electrical safety. PV string current monitoring, insulation resistance detection, and residual current monitoring support fault identification. Additional safeguards include reverse polarity protection, anti-islanding protection, AC short-circuit protection, and AC overvoltage protection. An integrated DC switch provides convenient DC isolation. These features support safer operation within compatible grid-connected photovoltaic installations.
Quiet Operation and Temperature Range
For residential installations, the GoodWe GW3000-XS-30 3000W solar inverter operates at a noise level below 20dB. Its specified operating temperature range extends from −25°C to +60°C, supporting installations across varied environmental conditions. The 3kW output rating suits homes requiring single-phase grid-connected solar conversion. With its monitoring capabilities, protective functions, and defined electrical specifications, this Single Phase Solar Inverter provides a suitable option for residential solar power systems.
Buy GoodWe GW3000-XS-30 3kW Single-Phase On-Grid Solar Inverter from Brotherhood IT
In Bangladesh, you can get original GoodWe GW3000-XS-30 3kW Solar Inverter From Brotherhood IT. We have a large collection of latest Solar Inverter to purchase. Order online from bhits.com.bd and get yours at the best price with delivery across Bangladesh. The GoodWe GW3000-XS-30 3kW Solar Inverter comes with 5 years warranty.
Specification
| General Information | ||
| Protection | PV String Current Monitoring PV Insulation Resistance Detection Residual Current Monitoring PV Reverse Polarity Protection Anti-islanding Protection AC Short Circuit Protection AC Overvoltage Protection DC Switch |
|
| Noise Level | <20dB | |
| Output | ||
| AC Output | Nominal Output Power (W): 3000 Nominal Output Apparent Power (VA): 3000 Nominal Output Voltage (V): 220 / 230 / 240, L / N / PE Nominal AC Grid Frequency (Hz): 50 / 60 Max. Output Current (A): 13.7 |
|
| Input (Charging) | ||
| DC Input | Max. Input Voltage (V): 600 MPPT Operating Voltage Range (V): 40 ~ 550 Start-up Voltage (V): 50 Max. Input Current per MPPT (A): 16 Number of MPP Trackers: 1 |
|
| Environment | ||
| Operating Temperature | 25 ~ +60 (°C) | |
| Warranty Information | ||
| Warranty | 3 years | |
