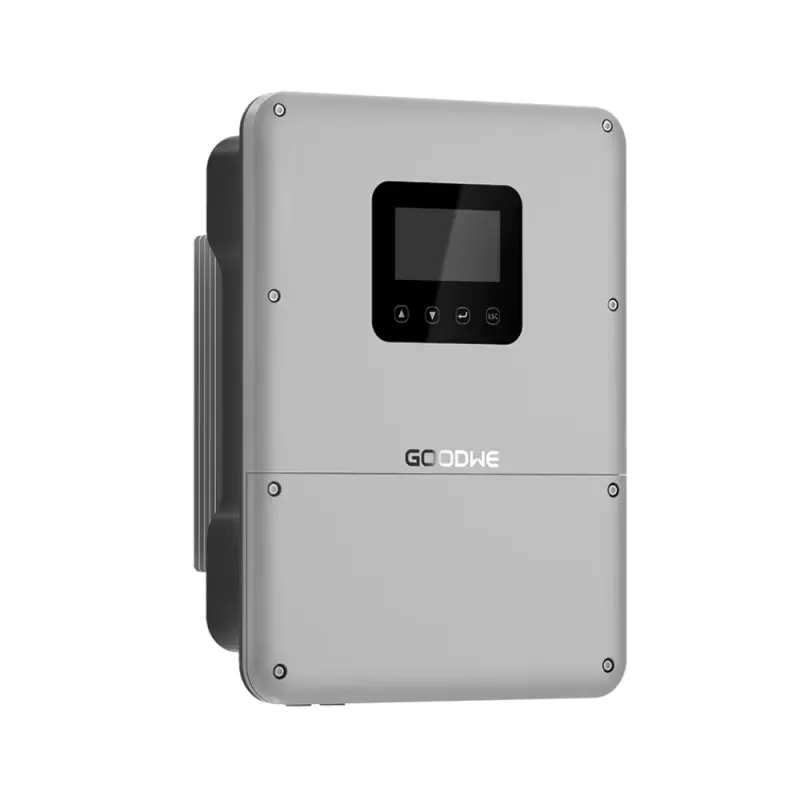

GoodWe GW3000-EO-G20 3KW Single Phase Off-Grid Hybrid Solar Inverter
- Brand: Goodwe
- Product Code: 015774
- Availability: In Stock
৳56,430/-
GoodWe GW3000-EO-G20 3KW Single Phase Off-Grid Hybrid Solar Inverter
The GoodWe GW3000-EO-G20 3KW Single Phase Off-Grid Hybrid Solar Inverter designed for off-grid solar power applications. This Single-Phase Solar Inverter supports solar energy conversion and battery integration. It accommodates lithium-ion and lead-acid batteries with a nominal voltage of 48V. Its compact power configuration supports solar installations requiring independent energy management. The GoodWe GW3000-EO-G20 combines solar input and battery charging capabilities within one inverter system.
Advanced Solar Input and Battery Charging
Equipped with a maximum solar input capacity of 6kW, the GoodWe GW3000-EO-G20 supports efficient solar energy collection. It features one MPPT with an operating voltage range of 50V to 480V. The maximum input voltage reaches 530V, while the maximum MPPT current is 21A. This Hybrid Solar Inverter provides up to 70A continuous battery charging and discharging current. Its maximum charging power is 3kW, with a discharging capacity of 3.3kW.
Intelligent Protection and System Safety
For improved operational safety, the GoodWe GW3000-EO-G20 incorporates several integrated protection features. These include PV string current monitoring, insulation resistance detection, and residual current monitoring. Reverse polarity and anti-islanding protection further support system safety. AC overcurrent, short circuit, and overvoltage protection help safeguard connected equipment. Additionally, Type III DC surge protection and Type II AC surge protection provide protection against electrical surges.
Off-Grid Energy Management
The GoodWe GW3000-EO-G20 Off-Grid Solar Inverter supports 50Hz and 60Hz grid frequencies. Its battery compatibility and solar charging functions support independent energy management. With integrated monitoring and multiple electrical safeguards, this 3kW Solar Inverter supports residential and small-scale solar installations. The GoodWe GW3000-EO-G20 offers an integrated approach to solar conversion, battery storage, and off-grid power management.
Buy GoodWe GW3000-EO-G20 3KW Solar Inverter from Brotherhood IT
In Bangladesh, you can get original GoodWe GW3000-EO-G20 3KW Solar Inverter From Brotherhood IT. We have a large collection of latest Solar Inverter to purchase. Order online from bhits.com.bd and get yours at the best price with delivery across Bangladesh. The GoodWe GW3000-EO-G20 3KW Solar Inverter comes with 5 years warranty.
Specification
| General Information | ||
| Protection | PV String Current Monitoring Integrated PV Insulation Resistance Detection Integrated Residual Current Monitoring Integrated PV Reverse Polarity Protection Integrated Anti-islanding Protection Integrated AC Overcurrent Protection Integrated AC Short Circuit Protection Integrated AC Overvoltage Protection Integrated DC Surge Protection Type III AC Surge Protection Type II |
|
| Output | ||
| AC Output | Nominal Output Power (W): 3000 Nominal Output Apparent Power (VA): 3000 Nominal Output Voltage (V): 220 / 230, L / N / PE Nominal AC Grid Frequency (Hz): 50 / 60 Max. Output Current (A): 35 |
|
| Input (Charging) | ||
| DC Input | Supported Battery Type: Li-Ion / Lead-acid Nominal Voltage (V): 48 Voltage Range (V): 40 ~ 60 Start-up Voltage (V): 44.2 Number of Battery Inputs: 1 Max. Continuous Charging Current (A): 70 Max. Continuous Discharging Current (A): 70 Max. Charging Power (kW): 3.0 Max. Discharging Power (kW): 3.3 |
|
| Solar Input | Max. Input Power (kW): 6.0 Max. Input Voltage (V): 530 MPPT Operating Voltage Range (V): 50 ~ 480 Start-up Voltage (V): 60 Nominal Input Voltage (V): 360 Max. MPPT Current (A): 21 Max. MPPT Short Circuit Current (A): 26 Number of MPPTs: 1 Number of Strings per MPPT: 1 |
|
| Environment | ||
| Operating Temperature | 25 ~ +60 (°C) | |
| Warranty Information | ||
| Warranty | 3 years | |
