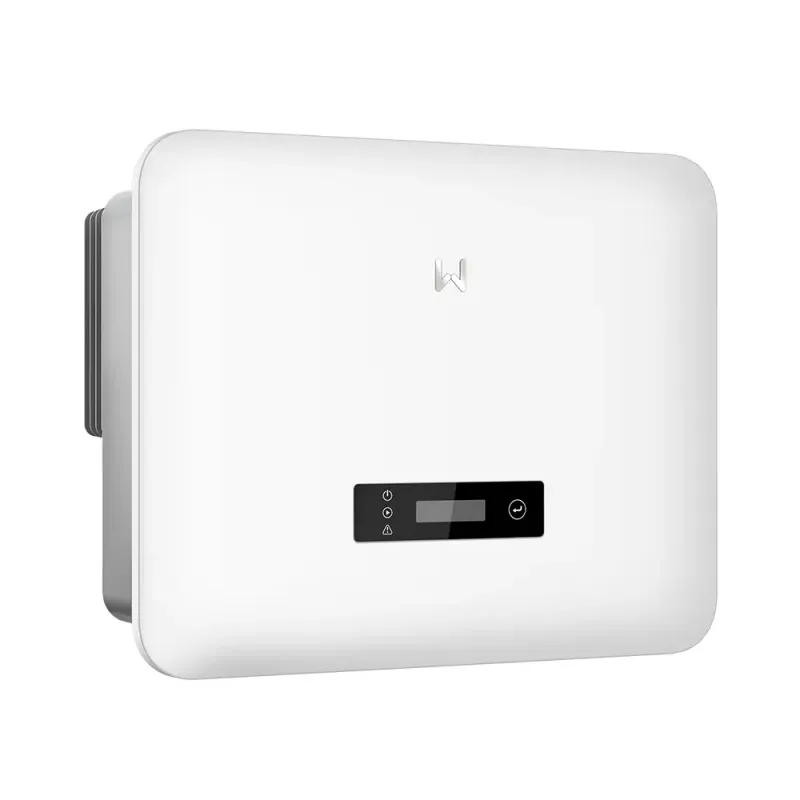

GoodWe GW15K-SDT-30 15KW Three Phase On-Grid Solar Inverter
- Brand: Goodwe
- Product Code: 015769
- Availability: In Stock
৳126,365/-
GoodWe GW15K-SDT-30 15KW Three Phase On-Grid Solar Inverter
The GoodWe GW15K-SDT-30 15kW Solar Inverter delivers efficient three-phase power conversion for commercial and industrial solar installations. This On-Grid Solar Inverter provides 15,000W nominal output power and 15,000VA apparent power. It supports grid voltages of 220/380V, 230/400V, and 240/415V. Its 50/60Hz grid frequency compatibility supports different electrical configurations.
Advanced DC Input and MPPT Performance
Designed for effective solar energy management, the GoodWe GW15K-SDT-30 Three Phase Solar Inverter features two independent MPPT trackers. It supports a maximum DC input voltage of 1100V and an MPPT operating range of 140V to 1000V. The inverter starts operating at 160V, supporting efficient solar energy conversion across varying generation conditions.
Comprehensive Protection and Quiet Operation
Safety remains important in the GoodWe GW15K-SDT-30 On-Grid Solar Inverter. Its protection features include PV string current monitoring, insulation resistance detection, and residual current monitoring. Additional safeguards cover PV reverse polarity, anti-islanding, AC short circuits, and AC overvoltage. Operating below 25dB, this inverter maintains low noise during operation.
Three-Phase Output and Operating Conditions
The GoodWe GW15K-SDT-30 15kW Solar Inverter delivers a maximum AC output current of 25A. Its supported configurations include 3L/N/PE and 3L/PE connections. The specified operating temperature range extends from -25°C to +60°C. With advanced monitoring, multiple protection functions, and high-voltage DC compatibility, this Three Phase Solar Inverter supports commercial on-grid solar power systems.
Buy GoodWe GW15K-SDT-30 15KW Three Phase On-Grid Solar Inverter from Brotherhood IT
In Bangladesh, you can get original GoodWe GW15K-SDT-30 15KW Three Phase On-Grid Solar Inverter From Brotherhood IT. We have a large collection of latest Solar Inverter to purchase. Order online from bhits.com.bd and get yours at the best price with delivery across Bangladesh. The GoodWe GW15K-SDT-30 15KW Three Phase On-Grid Solar Inverter comes with 5 years warranty.
Specification
| General Information | ||
| Protection | PV String Current Monitoring PV Insulation Resistance Detection Residual Current Monitoring PV Reverse Polarity Protection Anti-islanding Protection AC Short Circuit Protection AC Overvoltage Protection |
|
| Noise Level | <25dB | |
| Output | ||
| AC Output | Nominal Output Power (W): 15000 Nominal Output Apparent Power (VA): 15000 Nominal Output Voltage (V): 220 / 380, 230 / 400, 240 / 415, 3L / N / PE or 3L / PE Nominal AC Grid Frequency (Hz): 50 / 60 Max. Output Current (A): 25.0 |
|
| Input (Charging) | ||
| DC Input | Max. Input Voltage (V): 1100 MPPT Operating Voltage Range (V): 140 ~ 1000 Start-up Voltage (V): 160 Number of MPP Trackers: 2 |
|
| Environment | ||
| Operating Temperature | 25 ~ +60 (°C) | |
| Warranty Information | ||
| Warranty | 3 years | |
