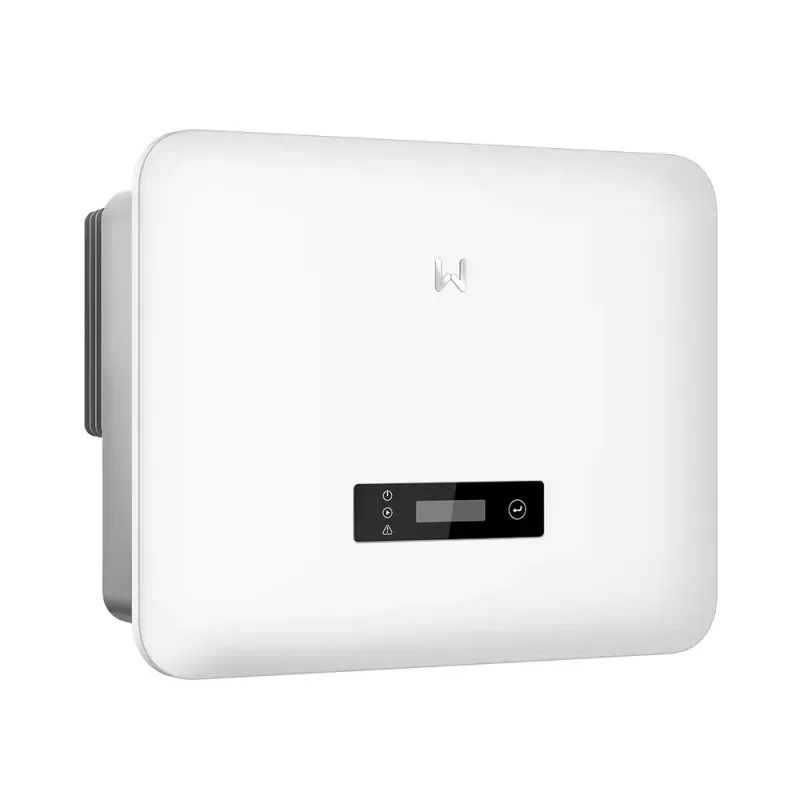

GoodWe GW12K-SDT-30 12KW Three Phase On-Grid Solar Inverter
- Brand: Goodwe
- Product Code: 015770
- Availability: In Stock
৳116,415/-
GoodWe GW12K-SDT-30 12kW Three Phase On-Grid Solar Inverter
The GoodWe GW12K-SDT-30 12kW Solar Inverter delivers efficient solar power conversion for three-phase grid-connected installations. This 12kW Solar Inverter features a nominal output power of 12,000W and maximum efficiency of 98.5%. Its advanced design supports stable energy conversion and effective solar power generation.
Advanced Three-Phase Solar Inverter Performance
Designed for commercial and residential solar systems, the GoodWe GW12K-SDT-30 Three Phase Solar Inverter supports multiple grid voltage configurations. These include 220/380V, 230/400V, and 240/415V outputs. It operates at 50Hz or 60Hz frequencies, with a maximum output current of 20A. The inverter also features two independent MPP trackers for efficient solar energy management.
High-Performance Input and Protection Features
The GoodWe GW12K-SDT-30 On-Grid Solar Inverter supports a maximum DC input voltage of 1100V. Its MPPT operating voltage ranges from 140V to 1000V, with a startup voltage of 160V. Built-in protection includes PV reverse polarity, insulation resistance, string current, and residual current monitoring. Additional safeguards include anti-islanding, AC short-circuit, and AC overvoltage protection.
Efficient Operation and Environmental Performance
The GoodWe GW12K-SDT-30 12kW Solar Inverter operates within a temperature range of -25°C to +60°C. Its noise level remains below 25dB, supporting quieter installation environments. With 98.5% maximum efficiency and intelligent monitoring features, this On-Grid Solar Inverter supports effective solar energy utilization. It offers a strong solution for three-phase grid-connected solar power systems.
Buy GoodWe GW12K-SDT-30 12kW Three Phase On-Grid Solar Inverter from Brotherhood IT
In Bangladesh, you can get original GoodWe GW12K-SDT-30 30kW Three Phase On-Grid Solar Inverter From Brotherhood IT. We have a large collection of latest Solar Inverter to purchase. Order online from bhits.com.bd and get yours at the best price with delivery across Bangladesh. The GoodWe GW12K-SDT-30 30kW Three Phase On-Grid Solar Inverter comes with 5 years warranty.
Specification
| General Information | ||
| Protection | PV String Current Monitoring PV Insulation Resistance Detection Residual Current Monitoring PV Reverse Polarity Protection Anti-islanding Protection AC Short Circuit Protection AC Overvoltage Protection |
|
| Noise Level | <25dB | |
| Output | ||
| AC Output | Nominal Output Power (W): 12000 Nominal Output Apparent Power (VA): 12000 Nominal Output Voltage (V): 220 / 380, 230 / 400, 240 / 415, 3L / N / PE or 3L / PE Nominal AC Grid Frequency (Hz): 50 / 60 Max. Output Current (A): 20.0 |
|
| Input (Charging) | ||
| DC Input | Max. Input Voltage (V): 1100 MPPT Operating Voltage Range (V): 140 ~ 1000 Start-up Voltage (V): 160 Number of MPP Trackers: 2 |
|
| Environment | ||
| Operating Temperature | 25 ~ +60 (°C) | |
| Warranty Information | ||
| Warranty | 3 years | |
