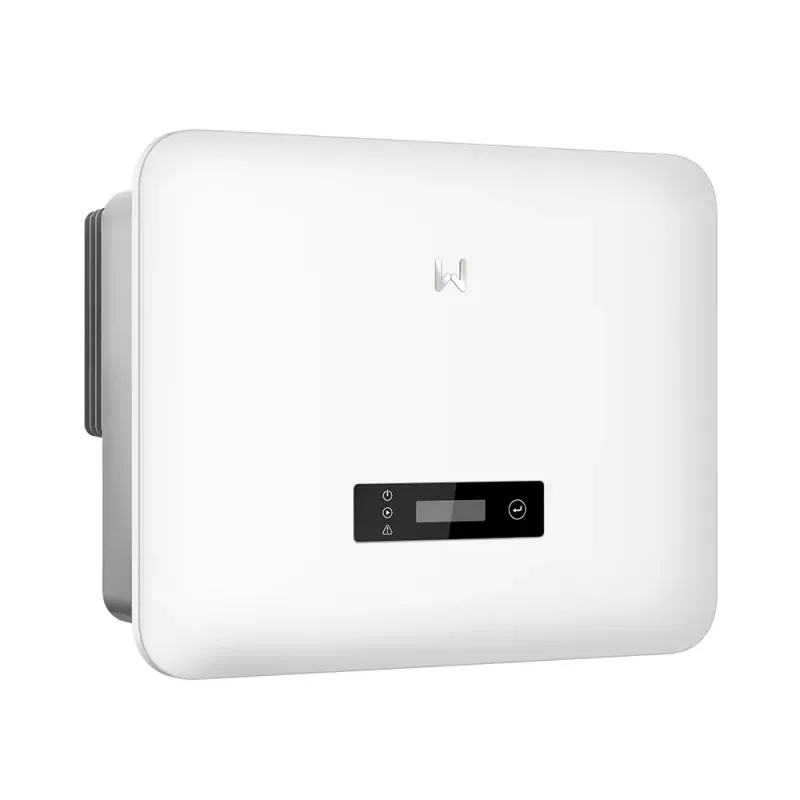

GoodWe GW10K-SDT-30 10KW Three Phase On-Grid Solar Inverter
- Brand: Others
- Product Code: 015671
- Availability: In Stock
৳109,450/-
GoodWe GW10K-SDT-30 10KW Three Phase On-Grid Solar Inverter
The GoodWe GW10K-SDT-30 10KW Three Phase On-Grid Solar Inverter delivers a nominal output power of 10,000W for commercial and residential solar installations. This On-Grid Solar Inverter supports nominal grid voltages of 220/380V, 230/400V, and 240/415V. It operates at 50Hz or 60Hz, with a maximum output current of 16.7A. Its three-phase configuration supports efficient solar power conversion for grid-connected systems. With a maximum DC input voltage of 1100V, this inverter supports modern photovoltaic installations.
The GoodWe GW10K-SDT-30 features two Maximum Power Point Tracking (MPPT) inputs to optimize solar energy harvesting across different panel arrangements. Its MPPT operating voltage range spans 140V to 1000V, with a startup voltage of 160V. These specifications support flexible solar array configurations and effective power generation under varying sunlight conditions. The inverter also operates within an ambient temperature range of -25°C to +60°C, supporting installations across different climatic conditions. Its low noise level of less than 25dB helps maintain a quieter installation environment.
Safety is another key feature of the GoodWe GW10K-SDT-30, with multiple built-in protection functions. These include PV string current monitoring, insulation resistance detection, residual current monitoring, and PV reverse polarity protection. Anti-islanding, AC short-circuit, and AC overvoltage protection further support safe grid-connected operation. With a 10,000VA nominal output apparent power, this Three Phase Inverter supports consistent solar energy conversion for suitable applications. The GoodWe GW10K-SDT-30 10kW Solar Inverter is a strong option for users seeking an On-Grid Solar Inverter with advanced monitoring, electrical protection, and three-phase output capabilities.
Buy GoodWe GW10K-SDT-30 10KW Three Phase On-Grid Solar Inverter from Brotherhood IT
In Bangladesh, you can get original GoodWe GW10K-SDT-30 10KW Three Phase On-Grid Solar Inverter From Brotherhood IT. We have a large collection of latest Solar Inverter to purchase. Order online from bhits.com.bd and get yours at the best price with delivery across Bangladesh. The GoodWe GW10K-SDT-30 10KW Three Phase On-Grid Solar Inverter comes with 5 years warranty.
Specification
| General Information | ||
| Protection | PV String Current Monitoring PV Insulation Resistance Detection Residual Current Monitoring PV Reverse Polarity Protection Anti-islanding Protection AC Short Circuit Protection AC Overvoltage Protection |
|
| Noise Level | <25dB | |
| Output | ||
| AC Output | Nominal Output Power (W): 10000 Nominal Output Apparent Power (VA): 10000 Nominal Output Voltage (V): 220 / 380, 230 / 400, 240 / 415, 3L / N / PE or 3L / PE Nominal AC Grid Frequency (Hz): 50 / 60 Max. Output Current (A): 16.7 |
|
| Input (Charging) | ||
| DC Input | Max. Input Voltage (V): 1100 MPPT Operating Voltage Range (V): 140 ~ 1000 Start-up Voltage (V): 160 Number of MPP Trackers: 2 |
|
| Environment | ||
| Operating Temperature | 25 ~ +60 (°C) | |
| Warranty Information | ||
| Warranty | 3 years | |
