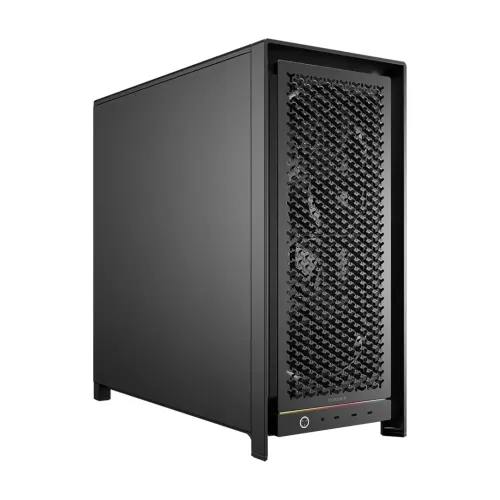

Corsair FRAME 5000D WORKSTATION Modular Mid-Tower E-ATX Gaming Casing

Corsair FRAME 5000D WORKSTATION Modular Mid-Tower E-ATX Gaming Casing

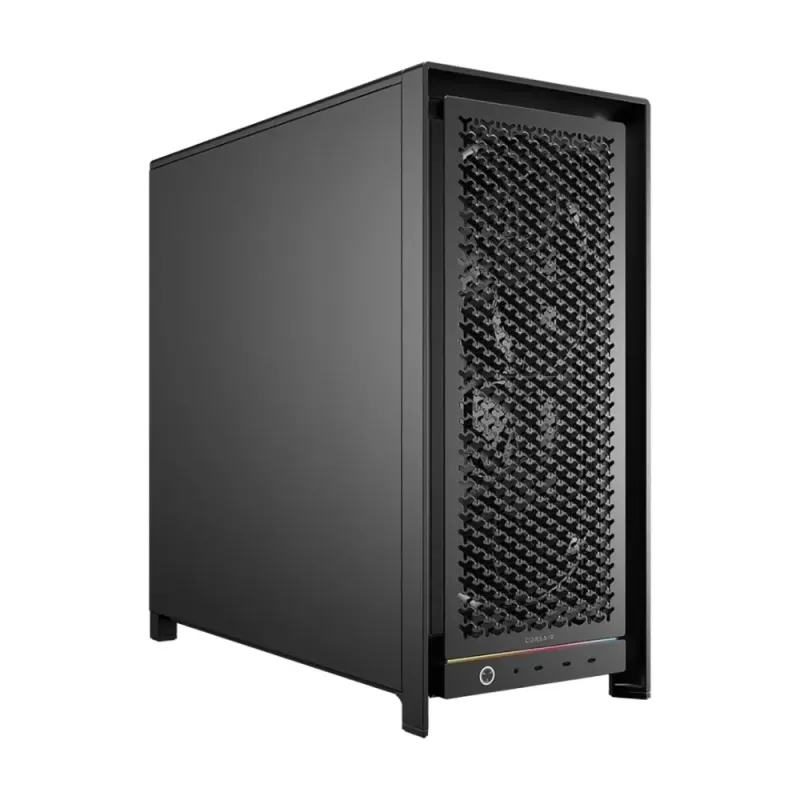

The Corsair FRAME 5000D WORKSTATION Modular Mid-Tower E-ATX Gaming Casing is a black mid-tower PC case built for high-powered workstation and multi-GPU builds. This Corsair FRAME 5000D WORKSTATION case supports Mini-ITX, MicroATX, ATX, E-ATX (305mm x 277mm), SSI-CEB, and SSI-EEB motherboards, including motherboards with reverse connectors. It combines a mesh front panel, a tempered glass side panel, and two pre-installed 200mm intake fans in a steel chassis that measures 542mm in height, 556mm in length, and 250mm in width.

Interior Space and GPU Support

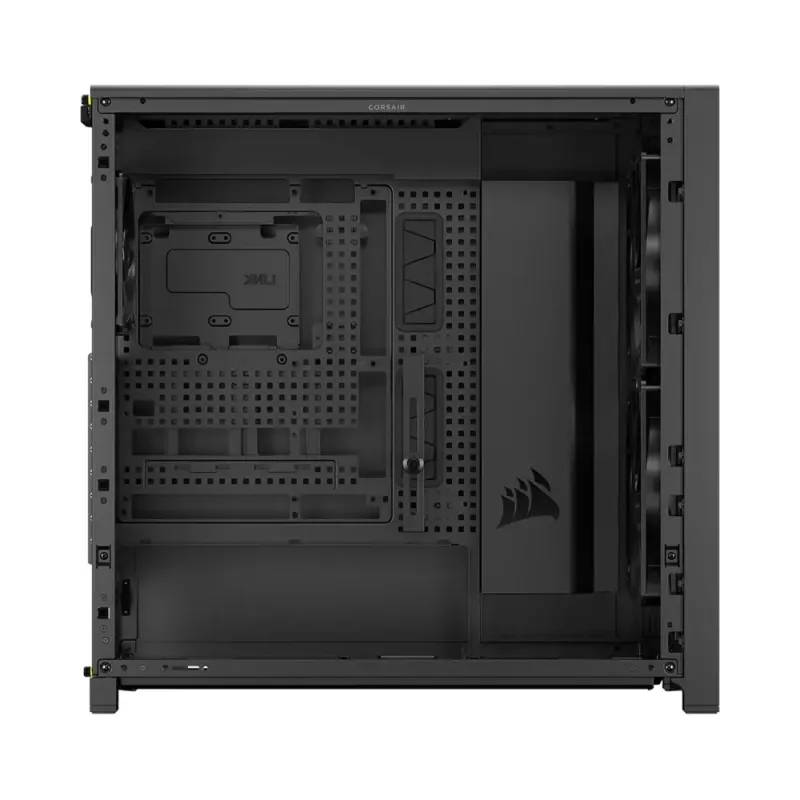

The Corsair FRAME 5000D WORKSTATION E-ATX case has a large interior designed for rendering, CAD, and AI workloads. It has vertical clearance for up to four dual-slot graphics cards, supports graphics cards up to 450mm long, and fits CPU coolers up to 175mm tall. A standard ATX power supply is supported. Storage options include two 3.5" drive bays and six 2.5" drive bays.

Cooling and Airflow

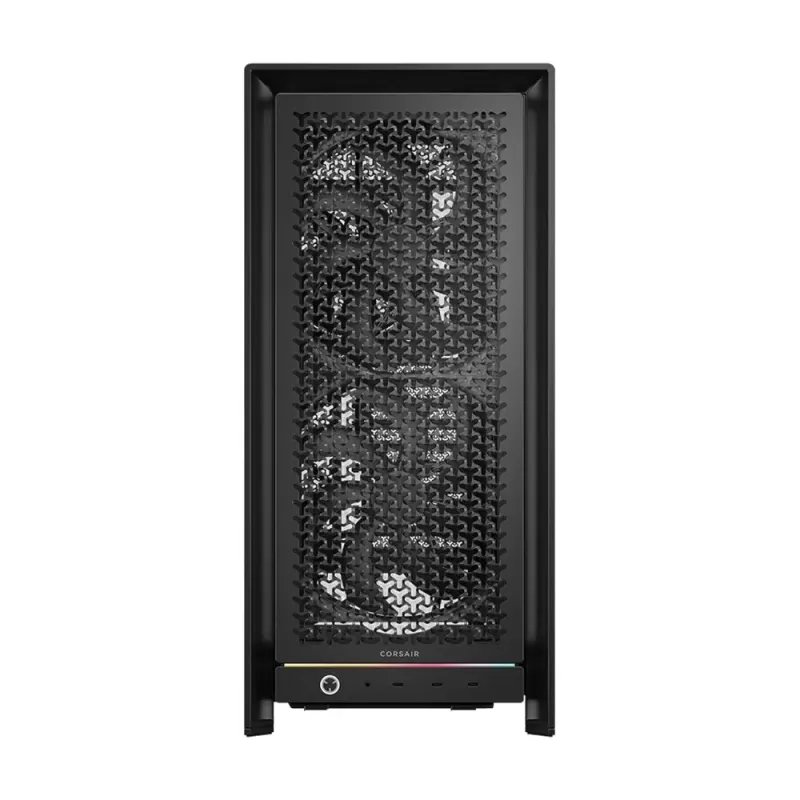

The Corsair FRAME 5000D WORKSTATION mid-tower case supports radiators up to 420mm at the top, up to 360mm at the front, and up to 140mm at the rear. Fan mounting options include three 120mm or 140mm fans at the top, three 120mm or 140mm fans or two 200mm fans at the front, four 120mm fans at the bottom, and one 120mm or 140mm fan at the rear. The 3D-Y airflow steel panels and mesh front let air move through the chassis to the components inside. The case is compatible with Corsair liquid coolers, including the H60, H100, H115, H150, Nautilus, and TITAN series.

Modular Design and Connectivity

The Corsair FRAME 5000D WORKSTATION Modular Case is part of the FRAME Modular Case System, which allows customized chassis configurations. Corsair also offers UV printing options for branded builds. The front panel provides one USB 3.2 Gen 2x2 Type-C port, two USB 3.2 Gen 1 Type-C ports, and one audio in/out jack. The internal I/O connectors include one HD Audio, one USB 3.2 Gen 1, one USB 3.2 Gen 2 Type-E, and one F_PANEL connector.

Buy Corsair FRAME 5000D WORKSTATION Modular Mid-Tower E-ATX Gaming Casing from Brotherhood IT

In Bangladesh, you can get the original Corsair FRAME 5000D WORKSTATION Modular Gaming Casing From Brotherhood IT. We have a large collection of the latest Corsair Casing to purchase for your Desktop PC. Order online from bhits.com.bd and get yours at the best price with delivery across Bangladesh. The Corsair FRAME 5000D WORKSTATION Modular E-ATX Gaming Casing has no warranty.

Specification
