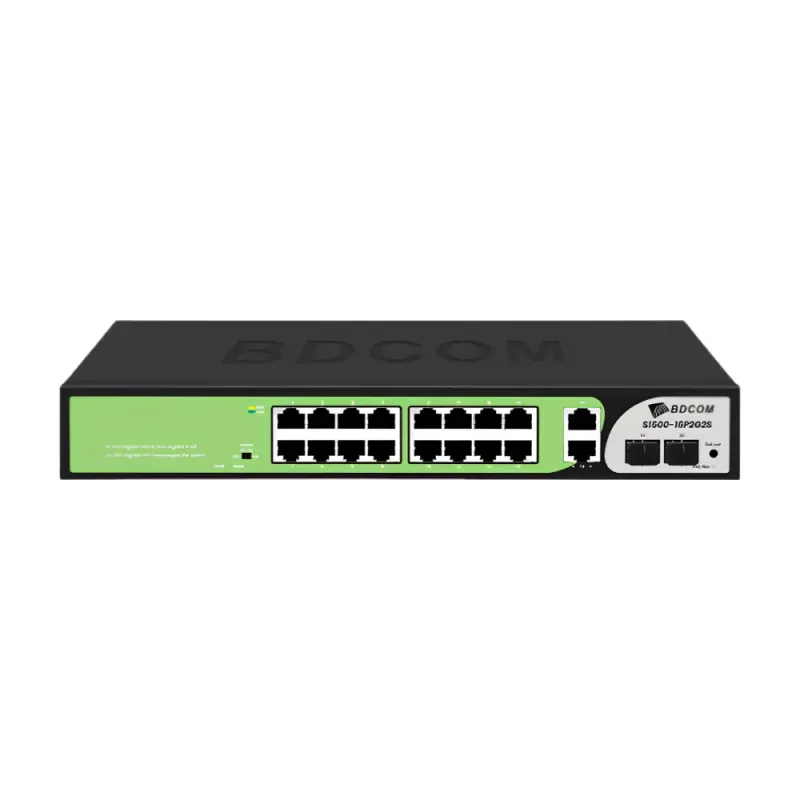

BDCOM S1500-16P2G2S 16-Port Gigabit Unmanaged PoE Switch
- Brand: BDCOM
- Product Code: 012974
- Availability: In Stock
৳13,365/-
BDCOM S1500-16P2G2S 16-Port Unmanaged PoE Switch
The BDCOM S1500-16P2G2S 16-port Gigabit unmanaged PoE switch is designed for network devices requiring efficient power and data transmission. The BDCOM 16 Port PoE Switch provides 16 Gigabit PoE+ ports, two Gigabit RJ45 uplinks, and two Gigabit SFP uplinks. The Gigabit Unmanaged PoE Switch delivers a 40 Gbps switching capacity, supporting smooth network traffic across connected devices.
PoE+ Power Distribution
With 802.3af/at support, each PoE port delivers up to 30W for compatible network equipment. This Unmanaged Network Switch 185W PoE budget supports multiple powered devices, including IP cameras, access points, and VoIP equipment. A built-in AC 100-240V power supply simplifies deployment without requiring an external power adapter. The BDCOM S1500-16P2G2S PoE Ethernet Switch provides a reliable power distribution option for PoE-based installations.
DIP Working Modes
The DIP function offers Default, VLAN, and CCTV operating modes for different network requirements. CCTV mode extends selected ports from 9 to 16, while VLAN mode provides port isolation across connected devices. These features help separate traffic and improve network management for surveillance environments. The BDCOM S1500-16P2G2S 16-Port Gigabit Switch also includes 4KV lightning protection for added electrical protection during installation.
Fanless Design and Installation
A fanless design supports quieter operation while reducing mechanical components inside the PoE Network Switch. The unit operates from 0°C to 50°C with 10%-90% non-condensing humidity. Its 440 × 204 × 44mm dimensions support desktop or rack-mounted installation in different networking spaces. Overall, the BDCOM S1500-16P2G2S CCTV PoE Switch combines Gigabit connectivity, PoE+ power, flexible DIP modes, and compact installation for network deployments.
Buy BDCOM S1500-16P2G2S 16-Port PoE Switch from Brotherhood IT
In Bangladesh, you can get the original BDCOM S1500-16P2G2S 16-Port Unmanaged PoE Switch From Brotherhood IT. We have a large collection of the latest BDCOM Switch to purchase for your Networking. Order online from bhits.com.bd and get yours at the best price with delivery across Bangladesh. The BDCOM S1500-16P2G2S 16-Port Unmanaged PoE Switch comes with a 1-year warranty.
Specification
| Main Feature | ||
| Type | Unmanaged PoE Switch | |
| Port | 6-Port Gigabit PoE+ 2-Port Gigabit RJ45 + 2-Port Gigabit SFP | |
| Network Standard | 802.3af/at, max output: 30W per port | |
| Advanced Functions | VLAN mode, Default mode, CCTV mode | |
| Data Transmission Rate | Switching capacity: 40Gbps | |
| MAC Address Table | 8K | |
| Environment | Operating temperature/humidity:0°C-50°C, 10%-90% non-condensing Storage temperature/humidity: -40°C-70°C, 5%-95% non-condensing |
|
| Others | Fanless, Lightning protection 4KV |
|
| Hardware Features | ||
| Interface | Uplink RJ45 Uplink SFP |
|
| LED | Yes | |
| Power Supply | Built-in AC: 100~240V, 50/60Hz | |
| Dimensions | 440x204x44 | |
| Manufacture Warranty | ||
| Warranty | 1-Year Warranty | |
